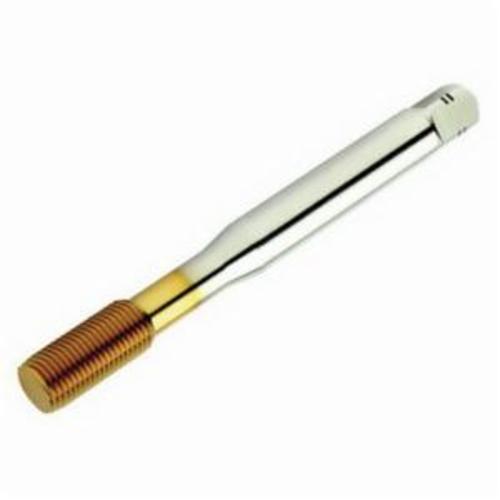

Sandvik Coromant 6181388 E317 CoroTap™ 400 Spiral Flute Forming Tap, Metric, M10x1.25, UNF, 5 Flutes, 6HX Class of Fit
Thread Forming Taps
1245844
MFG #: 6181388
Sandvik Coromant
129.60000
/ ea
Sandvik Coromant Forming Tap, Spiral Flute, Series: E317 CoroTap™ 400, Measurement System: Metric, M10x1.25, UNF, Semi-Bottoming Chamfer, 20 mm Thread Length, 100 mm Overall Length, 5 Flutes, Right Hand Cutting, Class of Fit: 6HX, 7 mm Shank Dia, HSS-E, PVD Coated
- Features
| Without coolant entry |
| 7 mm neck diameter |
| 75 mm usable length |
| 9.4 mm pre-machined hole diameter |
| 10 mm thread diameter |
| M, N, P and S material grade |
| Thread back taper property |
| Released life cycle state |
| Taps that form the thread instead of cutting |
| A chip-free solution |
| All materials not suitable since there is need of certain ductility |
| Recommended tensile strength limit is 1200 N/sq-mm |
| For through or blind holes applications |
| 3XD cutting depth |
| 7 x 5.5 mm tap shank adaptive interface machine direction |
| C2-3.5 chamfer |
