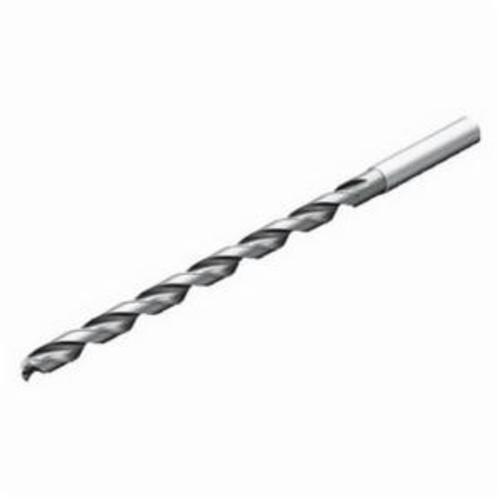

Sandvik Coromant 6151111 CoroDrill® 861 Extra Long Jobber Drill, 0.3937 in Dia x 7.559 in L, Carbide, PVD
Extension Length Drill Bits
1236144
MFG #: 6151111
Sandvik Coromant
559.04000
/ ea
Sandvik Coromant Jobber Drill, Extra Long, Series: CoroDrill® 861, 0.3937 in Dia, 7.559 in Overall Length, 4.7874 in Cutting Depth, 2 Flutes, SSK Flute, 5.748 in Flute Length, 0.3937 in Shank, Cylindrical Shank, 140 deg Point, Split Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, PVD
- Features
| 0 deg body half taper |
| Axial concentric coolant entry on circle |
| Axial concentric coolant exit on circle |
| 20 bar coolant |
| EFW cutting feed |
| 34.331 deg helix flute |
| 23.578 deg orthogonal rake |
| GC34 manufacturer grade |
| 190.4 mm L functional |
| 40 mm L clamping |
| 3 regrinds |
| 1.6 mm L point |
| 3 mm L regrind |
| 10313 r/min |
| H6 connection diameter tolerance |
| H9 achievable hole tolerance |
| 861.1..A1-GM (12xD) tool style |
| 12.16 usable length diameter ratio |
| K, M, N, P material grade |
| 20 life cycle state |
