Sandvik Coromant

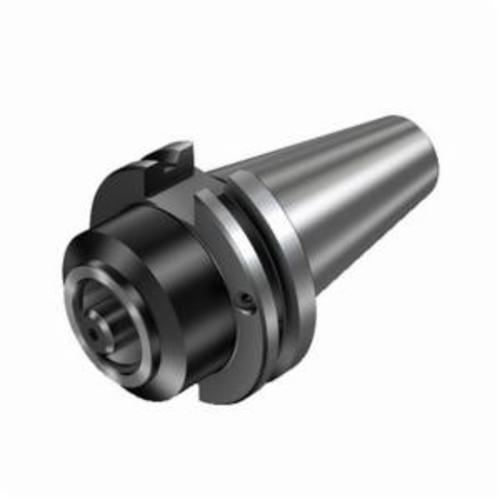

Sandvik Coromant 6070095, 2.4803 in Shank Connection, BIG-PLUS CAT-V x Coromant® Capto® Shank, CAT-V50 Taper, 3.1496 in Hole, 5.3149 in Projection
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6070095, 2.4803 in Shank Connection, BIG-PLUS CAT-V x Coromant® Capto® Shank, CAT-V50 Taper, 3.1496 in Hole, 5.3149 in Projection
SKU1198420
MFGR #6070095
Your Cost: $1,002.35/ea
Sandvik Coromant Adapter, 3.1496 in Hole Dia, BIG-PLUS CAT-V x Coromant® Capto® Shank, CAT-V50 Taper, 5.3149 in Projection, 8.4645 in Overall Length, 3.874 in Overall Dia, 2.4803 in Shank Connection, ANSI Code: C6-A390.545-50 090, ISO Code: C6-A390.545-50 090
Sandvik Coromant Adapter, 3.1496 in Hole Dia, BIG-PLUS CAT-V x Coromant® Capto® Shank, CAT-V50 Taper, 5.3149 in Projection, 8.4645 in Overall Length, 3.874 in Overall Dia, 2.4803 in Shank Connection, ANSI Code: C6-A390.545-50 090, ISO Code: C6-A390.545-50 090
Alternate Catalog Number C6-A390.545-50 090 ANSI Code C6-A390.545-50 090 Catalog Number 6070095 Country of Origin SE Gross Weight Per Pack 8.6500 lb Hole Diameter 3.1496 in Includes convertible to coolant through flange ISO Code C6-A390.545-50 090 Item Group 530 Nose Diameter 5763028 Centre Screw, 5763054 Retaining Nut, 5764033 Extension Key and 5764109 Retaining Nut Spanner Overall Diameter 3.874 in Overall Length 8.4645 in Quick Change System C6 Series 63 mm Shank Connection Size 2.4803 in Shank Type BIG-PLUS CAT-V x Coromant® Capto® System Size Machine Side CAT-V50 Type 98.4 mm UPC 11 69826256038 UPC 12 69826256038 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Body Diameter 3.874 Projection 5.3149 in Taper Size CAT-V50 0 - 60 deg body half taper Decentral over flange and axial coolant entry 80 bar coolant Axial concentric coolant exit 90 mm L body Cx-A390.545 (11) tool style Steel body 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | C6-A390.545-50 090 |
| ANSI Code | C6-A390.545-50 090 |
| Catalog Number | 6070095 |
| Country of Origin | SE |
| Gross Weight Per Pack | 8.6500 lb |
| Hole Diameter | 3.1496 in |
| Includes | convertible to coolant through flange |
| ISO Code | C6-A390.545-50 090 |
| Item Group | 530 |
| Nose Diameter | 5763028 Centre Screw, 5763054 Retaining Nut, 5764033 Extension Key and 5764109 Retaining Nut Spanner |
| Overall Diameter | 3.874 in |
| Overall Length | 8.4645 in |
| Quick Change System | C6 |
| Series | 63 mm |
| Shank Connection Size | 2.4803 in |
| Shank Type | BIG-PLUS CAT-V x Coromant® Capto® |
| System Size Machine Side | CAT-V50 |
| Type | 98.4 mm |
| UPC 11 | 69826256038 |
| UPC 12 | 69826256038 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Body Diameter | 3.874 |
| Projection | 5.3149 in |
| Taper Size | CAT-V50 |
| 0 - 60 deg body half taper |
| Decentral over flange and axial coolant entry |
| 80 bar coolant |
| Axial concentric coolant exit |
| 90 mm L body |
| Cx-A390.545 (11) tool style |
| Steel body |
| 20 life cycle state |
