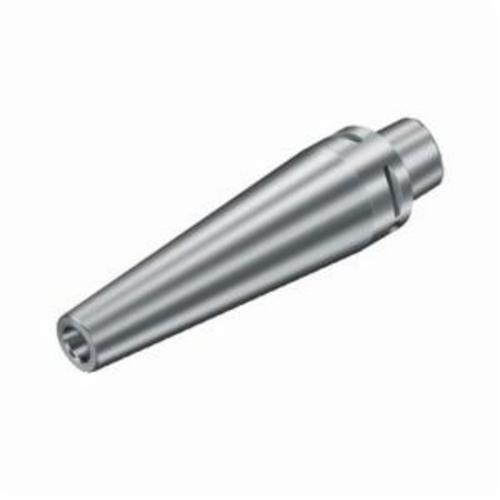

Sandvik Coromant 6070080 Coromant® Capto® to Shrink Fit Chuck Adapter, C4 Taper
Custom_Product_Images_Illustration
Sandvik Coromant 6070080 Coromant® Capto® to Shrink Fit Chuck Adapter, C4 Taper
SKU1230839
MFGR #6070080
Your Cost: $471.56/ea
Sandvik Coromant Adapter, Coromant® Capto® to Shrink Fit Chuck, 5/8 in Hole Dia, C4 Taper, 0.9409 in Nose Dia, 4.4094 in Projection, 0.9409 to 1.5748 in Body Dia Workpiece Side, 1.5354 in Clamping Length, ANSI Code: C4-A391.19-15 112, ISO Code: C4-A391.19-15 112
Sandvik Coromant Adapter, Coromant® Capto® to Shrink Fit Chuck, 5/8 in Hole Dia, C4 Taper, 0.9409 in Nose Dia, 4.4094 in Projection, 0.9409 to 1.5748 in Body Dia Workpiece Side, 1.5354 in Clamping Length, ANSI Code: C4-A391.19-15 112, ISO Code: C4-A391.19-15 112
Alternate Catalog Number C4-A391.19-15 112 ANSI Code C4-A391.19-15 112 Body Diameter Workpiece Side 0.9409 to 1.5748 in Catalog Number 6070080 Clamping Length 1.5354 in Country of Origin SE Gross Weight Per Pack 1.6200 lb Hole Diameter 5/8 in ISO Code C4-A391.19-15 112 Item Group 530 Nose Diameter 0.9409 in Projection 4.4094 in Series 15.875 mm System Size Machine Side Coromant® Capto® x Shrink Fit Chuck Taper Size C4 Type Coromant® Capto® to Shrink Fit Chuck UPC 11 69826255892 Warranty 5758336 Key and 5762949 Adjustment Screw Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Adjustment Range 23.9 mm Shank Type Modular Connection Suitable For Use With C4-A391.19-15 112 Bolt and segment clamping machine side adaptive interface Cylindrical clamping (shrink fits) workpiece side adaptive interface Balanced by design 0 - 5 deg body half taper Axial concentric and radial coolant entry 80 bar coolant Axial concentric coolant exit 112 mm L body 136 mm OAL Cx-A391.19 (3) tool style 40 mm Dia machine side connection 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | C4-A391.19-15 112 |
| ANSI Code | C4-A391.19-15 112 |
| Body Diameter Workpiece Side | 0.9409 to 1.5748 in |
| Catalog Number | 6070080 |
| Clamping Length | 1.5354 in |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.6200 lb |
| Hole Diameter | 5/8 in |
| ISO Code | C4-A391.19-15 112 |
| Item Group | 530 |
| Nose Diameter | 0.9409 in |
| Projection | 4.4094 in |
| Series | 15.875 mm |
| System Size Machine Side | Coromant® Capto® x Shrink Fit Chuck |
| Taper Size | C4 |
| Type | Coromant® Capto® to Shrink Fit Chuck |
| UPC 11 | 69826255892 |
| Warranty | 5758336 Key and 5762949 Adjustment Screw |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Adjustment Range | 23.9 mm |
| Shank Type | Modular Connection |
| Suitable For Use With | C4-A391.19-15 112 |
| Bolt and segment clamping machine side adaptive interface |
| Cylindrical clamping (shrink fits) workpiece side adaptive interface |
| Balanced by design |
| 0 - 5 deg body half taper |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| Axial concentric coolant exit |
| 112 mm L body |
| 136 mm OAL |
| Cx-A391.19 (3) tool style |
| 40 mm Dia machine side connection |
| 20 life cycle state |
