Stable and secure clamping|Chip control and process security|Excellent surface finish|Reliable and secure machining, even in roughing applications|Possibility to optimize by using damped Silent Tools™ |
20 life cycle state |
0 deg body workpiece side |
Axial concentric and radial coolant entry |
10 bar coolant |
Lever hole clamping |
Decentral coolant exit with nozzles, adjustable |
100 mm Dia connection |
75 deg cutting edge |
-6 deg inclination |
12 deg ramping |
17 Nm torque |
1 in insert seat size |
110 mm maximum overhang |
15 deg lead |
-6 deg rake |
Bolt and segment clamping adaptive interface |

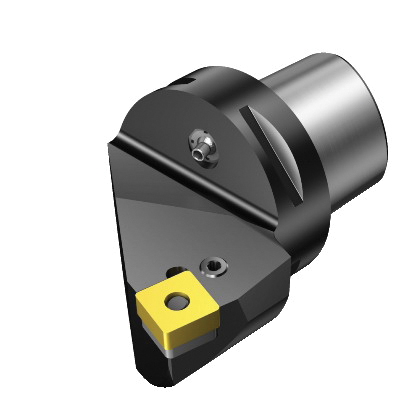

ANSI Code: C10-PSRNL-58110-25 |
ISO Code: C10-PSRNL-58110-25 |
