Stable and secure clamping|Chip control and process security|Excellent surface finish|Reliable and secure machining, even in roughing applications|Possibility to optimize by using damped Silent Tools™ |
20 life cycle state |
0 deg body workpiece side |
Axial concentric and radial coolant entry |
80 bar coolant |
Lever hole clamping |
Decentral focused coolant exit with nozzles |
100 mm Dia connection |
180 - 280 mm Dia minimum bore |
93 deg cutting edge |
-7 deg inclination |
27 deg ramping |
5 Nm torque |
1/2 in insert seat size |
110 mm maximum overhang |
-3 deg lead |
-6 deg rake |
Bolt and segment clamping adaptive interface |

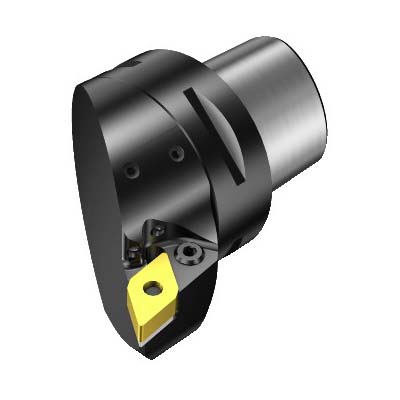

ANSI Code: C10-PDJNL-68110-15HP |
ISO Code: C10-PDJNL-68110-15HP |
