Stable and secure clamping|Chip control and process security|Excellent surface finish|Reliable and secure machining, even in roughing applications|Possibility to optimize by using damped Silent Tools™ |
20 life cycle state |
0 deg body workpiece side |
Axial concentric and radial coolant entry |
80 bar coolant |
Lever hole clamping |
Decentral focused coolant exit with nozzles |
100 mm Dia connection |
315 mm Dia minimum bore |
95 deg cutting edge |
-6 deg inclination |
0 deg ramping |
10 Nm torque |
3/4 in insert seat size |
110 mm maximum overhang |
-5 deg lead |
-6 deg rake |
Bolt and segment clamping adaptive interface |

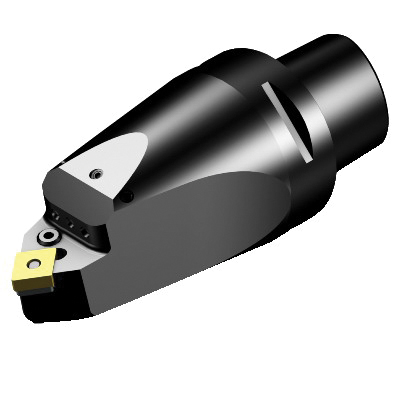

ANSI Code: C10-PCMNN-00110-19HP |
ISO Code: C10-PCMNN-00110-19HP |
