Sandvik Coromant

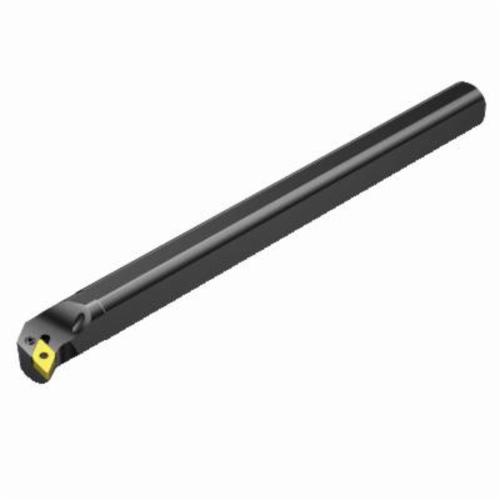

Sandvik Coromant 6056843 T-Max® P Indexable Boring Bar, 1.5748 in Min, 11.811 in OAL, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6056843 T-Max® P Indexable Boring Bar, 1.5748 in Min, 11.811 in OAL, Right Hand
SKU1247100
MFGR #6056843
Your Cost: $539.44/ea
Sandvik Coromant Indexable Boring Bar, Series: T-Max® P, 1.5748 in Minimum Bore Dia, 5.0393 in Maximum Bore Depth, 11.811 in Overall Length, 1.2598 in Shank Dia, Cylindrical With 3-Flats Shank, Right Hand Cutting, Insert Compatibility: DNMG 11 04 08 (MIIDM), DNMG 332 (MIIDN), D-55 deg Diamond Insert, 0.8661 in Width Offset, Steel
Sandvik Coromant Indexable Boring Bar, Series: T-Max® P, 1.5748 in Minimum Bore Dia, 5.0393 in Maximum Bore Depth, 11.811 in Overall Length, 1.2598 in Shank Dia, Cylindrical With 3-Flats Shank, Right Hand Cutting, Insert Compatibility: DNMG 11 04 08 (MIIDM), DNMG 332 (MIIDN), D-55 deg Diamond Insert, 0.8661 in Width Offset, Steel
Alternate Catalog Number A32T-PDUNR 11 Catalog Number 6056843 Country of Origin SE Gross Weight Per Pack 3.6900 lb Inscribed Circle 3/8 Insert Thickness 0.187 in Item Group 210 Overall Length 11.811 in Series T-Max® P Shank Type Cylindrical with 3-Flats Toolholder Style A..PDUNR Toolholder Type A..PDUNR UPC 11 69826264033 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Hand of Holder Right Insert Compatibility DNMG 11 04 08 Insert Shape 55 deg Diamond Material Steel Maximum Bore Depth 5.039 in Minimum Bore Diameter 1.575 in Shank Diameter 1.26 in Through Coolant Yes Stable and secure clamping|Chip control and process security|Excellent surface finish 0 deg body workpiece side Axial concentric coolant entry Axial inclined coolant exit 30 mm H shank -6 deg orthogonal rake 145.038 lbf/sq-in coolant pressure 93 deg cutting edge -10 deg inclination 20 life cycle state Coolant through -3 deg lead 27 deg maximum ramping 2 Nm torque Lever hole clamping 3/8 in insert seat ANSI Code: A32T-PDUNR 11 ISO Code: A32T-PDUNR 11
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | A32T-PDUNR 11 |
| Catalog Number | 6056843 |
| Country of Origin | SE |
| Gross Weight Per Pack | 3.6900 lb |
| Inscribed Circle | 3/8 |
| Insert Thickness | 0.187 in |
| Item Group | 210 |
| Overall Length | 11.811 in |
| Series | T-Max® P |
| Shank Type | Cylindrical with 3-Flats |
| Toolholder Style | A..PDUNR |
| Toolholder Type | A..PDUNR |
| UPC 11 | 69826264033 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Hand of Holder | Right |
| Insert Compatibility | DNMG 11 04 08 |
| Insert Shape | 55 deg Diamond |
| Material | Steel |
| Maximum Bore Depth | 5.039 in |
| Minimum Bore Diameter | 1.575 in |
| Shank Diameter | 1.26 in |
| Through Coolant | Yes |
| Stable and secure clamping|Chip control and process security|Excellent surface finish |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 30 mm H shank |
| -6 deg orthogonal rake |
| 145.038 lbf/sq-in coolant pressure |
| 93 deg cutting edge |
| -10 deg inclination |
| 20 life cycle state |
| Coolant through |
| -3 deg lead |
| 27 deg maximum ramping |
| 2 Nm torque |
| Lever hole clamping |
| 3/8 in insert seat |
| ANSI Code: A32T-PDUNR 11 |
| ISO Code: A32T-PDUNR 11 |
