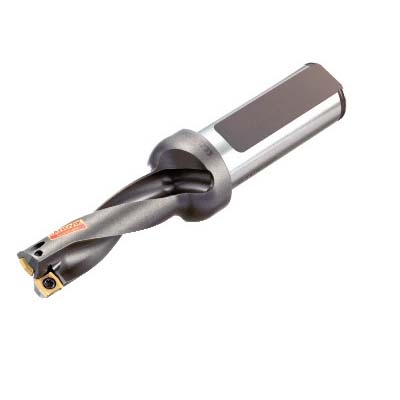

Sandvik Coromant 5962222 CoroDrill® 881 Insert Drill, 0.5708 in Drill, 0.7874 in Shank, 1.7322 in Maximum Drill, 3.034
Indexable Drills
1254478
MFG #: 5962222
Sandvik Coromant
683.63000
/ ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 881, 0.5708 in Drill, 0.7874 in Shank Dia, Cylinder Shank, 1.7322 in Maximum Drill Depth, 4.3307 in Overall Length, 3.034 Drill Depth by Dia Ratio, Insert Compatibility: 881-02 02 04M-C-GM1 (MIIDM) and 881-02 02 04M-P-GM1 (MIIDM), 1.7322 in Flute Length
- Features
| 59.7276 mm L functional |
| 20 mm Dia body |
| 50 mm L clamping |
| 0.2724 mm L point |
| 30000 r/min |
| -0.1 to 0.3 mm achievable hole tolerance |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| Right hand helix flute |
| 0 deg rake orthogonal |
| 18.2 mm H shank |
| 0 deg inclination, 2 flutes |
| 78 deg cutting edge |
| 20 life cycle state |
| 46 mm L steel body |
| 881..Lxx-03 tool style |
