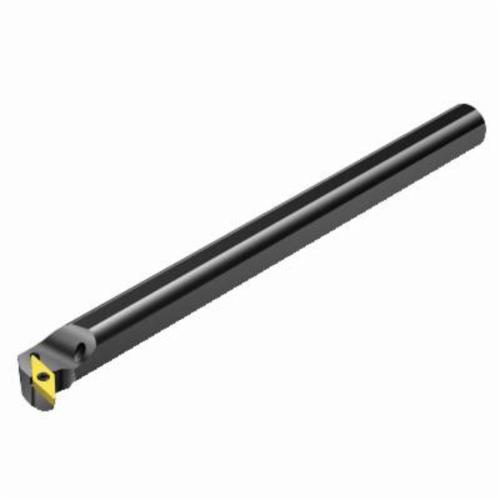

Sandvik Coromant 5937381 CoroTurn® 107 Indexable Boring Bar, 1.2992 in Min, 11.811 in OAL, Left Hand
Indexable Boring Bars
1247720
MFG #: 5937381
Sandvik Coromant
298.50000
/ ea
Sandvik Coromant Indexable Boring Bar, Series: CoroTurn® 107, 1.2992 in Minimum Bore Dia, 3.937 in Maximum Bore Depth, 11.811 in Overall Length, 0.9842 in Shank Dia, Cylindrical With 3-Flats Shank, Left Hand Cutting, Insert Compatibility: VBMT 11 02 04 (MIIDM), VBMT 2(1.5)1 (MIIDN), V-35 deg Diamond Insert, 0.7086 in Width Offset, Steel
- Features
| Screw clamp design of CoroTurn® 107 ensures stability and unobstructed chip flow while turning, it is easy to handle, clean and maintain|Tool holders are equipped with nozzles that direct precision coolant right at the insert edge to boost process security and provide excellent chip control|When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107|The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish|Wiper geometries available for high feeds and high quality surface finish|Ground, super sharp insert offer for exceptional surface finish|Holders with conventional and precision coolant design |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 23 mm H shank |
| 0 deg orthogonal rake |
| 145.038 lbf/sq-in coolant pressure |
| 93 deg cutting edge |
| -3.8504 deg inclination |
| 20 life cycle state |
| Coolant through |
| -3 deg lead |
| 50 deg maximum ramping |
| 0.9 Nm torque |
| 40 - 60 deg insert screw clamping |
| 1/4 in insert seat |
| ANSI Code: A25T-SVUBL 11-D |
| ISO Code: A25T-SVUBL 11-D |
