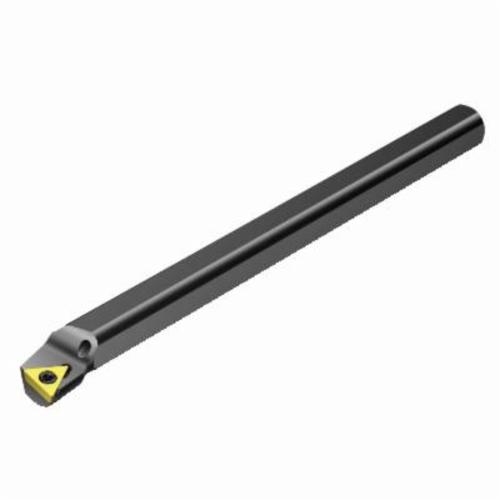

Sandvik Coromant 5937361 CoroTurn® 107 Indexable Boring Bar, 0.9291 in Min, 10 in OAL, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant 5937361 CoroTurn® 107 Indexable Boring Bar, 0.9291 in Min, 10 in OAL, Left Hand
SKU1247824
MFGR #5937361
Your Cost: $289.08/ea
Sandvik Coromant Indexable Boring Bar, Series: CoroTurn® 107, 0.9291 in Minimum Bore Dia, 3 in Maximum Bore Depth, 10 in Overall Length, 3/4 in Shank Dia, Cylindrical With 3-Flats Shank, Left Hand Cutting, Insert Compatibility: TCMT 11 02 04 (MIIDM), TCMT 2(1.5)1 (MIIDN), Triangle Insert, 1/2 in Width Offset, Steel
Sandvik Coromant Indexable Boring Bar, Series: CoroTurn® 107, 0.9291 in Minimum Bore Dia, 3 in Maximum Bore Depth, 10 in Overall Length, 3/4 in Shank Dia, Cylindrical With 3-Flats Shank, Left Hand Cutting, Insert Compatibility: TCMT 11 02 04 (MIIDM), TCMT 2(1.5)1 (MIIDN), Triangle Insert, 1/2 in Width Offset, Steel
Alternate Catalog Number A12S-STFCL 2 Catalog Number 5937361 Country of Origin SE Gross Weight Per Pack 1.1400 lb Inscribed Circle 1/4 Insert Screw 5763193 Insert Thickness 0.094 in Item Group 210 Overall Length 10 in Series CoroTurn® 107 Shank Type Cylindrical With 3-Flats Toolholder Style A..STFCL Toolholder Type A..STFCL UPC 11 69826254112 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Hand of Holder Left Insert Compatibility TCMT 11 02 04 Insert Shape Triangle Material Steel Maximum Bore Depth 3 in Minimum Bore Diameter 0.929 in Shank Diameter 3/4 in Through Coolant Yes Screw clamp design of CoroTurn® 107 ensures stability and unobstructed chip flow while turning, it is easy to handle, clean and maintain|Tool holders are equipped with nozzles that direct precision coolant right at the insert edge to boost process security and provide excellent chip control|When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107|The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish|Wiper geometries available for high feeds and high quality surface finish|Ground, super sharp insert offer for exceptional surface finish|Holders with conventional and precision coolant design 0 deg body workpiece side Axial concentric coolant entry Axial inclined coolant exit 18.00 mm H shank 0 deg orthogonal rake 145.038 lbf/sq-in coolant pressure 91 deg cutting edge -3.161 deg inclination 20 life cycle state Coolant through -1 deg lead 0 deg maximum ramping 0.9 Nm torque 40 - 60 deg insert screw clamping 1/4 in insert seat ANSI Code: A12S-STFCL 2 ISO Code: A12S-STFCL 2
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | A12S-STFCL 2 |
| Catalog Number | 5937361 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.1400 lb |
| Inscribed Circle | 1/4 |
| Insert Screw | 5763193 |
| Insert Thickness | 0.094 in |
| Item Group | 210 |
| Overall Length | 10 in |
| Series | CoroTurn® 107 |
| Shank Type | Cylindrical With 3-Flats |
| Toolholder Style | A..STFCL |
| Toolholder Type | A..STFCL |
| UPC 11 | 69826254112 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Hand of Holder | Left |
| Insert Compatibility | TCMT 11 02 04 |
| Insert Shape | Triangle |
| Material | Steel |
| Maximum Bore Depth | 3 in |
| Minimum Bore Diameter | 0.929 in |
| Shank Diameter | 3/4 in |
| Through Coolant | Yes |
| Screw clamp design of CoroTurn® 107 ensures stability and unobstructed chip flow while turning, it is easy to handle, clean and maintain|Tool holders are equipped with nozzles that direct precision coolant right at the insert edge to boost process security and provide excellent chip control|When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107|The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish|Wiper geometries available for high feeds and high quality surface finish|Ground, super sharp insert offer for exceptional surface finish|Holders with conventional and precision coolant design |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 18.00 mm H shank |
| 0 deg orthogonal rake |
| 145.038 lbf/sq-in coolant pressure |
| 91 deg cutting edge |
| -3.161 deg inclination |
| 20 life cycle state |
| Coolant through |
| -1 deg lead |
| 0 deg maximum ramping |
| 0.9 Nm torque |
| 40 - 60 deg insert screw clamping |
| 1/4 in insert seat |
| ANSI Code: A12S-STFCL 2 |
| ISO Code: A12S-STFCL 2 |
