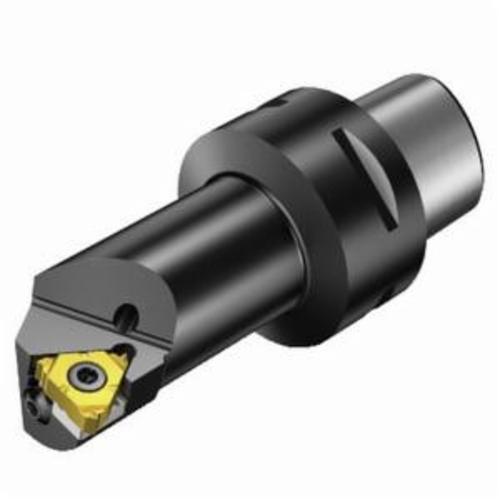

Bolt and segment clamping machine side adaptive interface |
20 life cycle state |
-15 deg axial clearance |
0 deg body workpiece side |
18.5 mm Dia steel body |
Axial concentric and radial entry |
10 bar coolant |
40 - 60 deg insert screw, rail bottom |
Axial inclined exit |
50 mm Dia connection25 mm Dia minimum bore |
-15 deg rake orthogonal |
-1 deg inclination |
36 mm L usable |
266.RL-16.. compatible insert |
90 mm OAL |
T - Triangle insert shape |
3/8 in insert seat |
1 deg thread helix correction |
3 Nm torque |
Cx-266R/LKF tool style |
