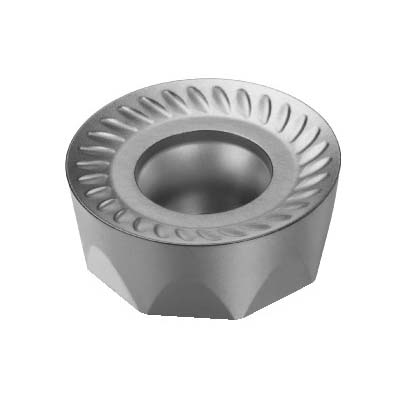

Sandvik Coromant 5907156 CoroMill® 200 Milling Insert, RCKT 10 T3 M0-MM 1040 ANSI, R-Round, RCKT-MM Insert, Carbide, 1040
RCKT Milling Inserts
1254773
MFG #: 5907156
Sandvik Coromant
13.52000
/ ea
Sandvik Coromant Milling Insert, Series: CoroMill® 200, RCKT-MM Insert, R-Round, 0.3937 in Inscribed Circle, 0.1562 in Thickness, MM Chipbreaker, 0.1968 in Corner Radius, Positive Rake, 0 deg Lead Angle, 0.1732 in Hole Dia, Manufacturer's Grade: 1040, ANSI Code: RCKT 10 T3 M0-MM 1040, ISO Code: RCKT 10 T3 M0-MM 1040, Neutral Hand, Carbide, PVD Coated, Material Grade: M
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 7 deg clearance |
| 5 mm D cutting |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| E cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
| 0.1 to 0.42 mm/r cutting feed |
