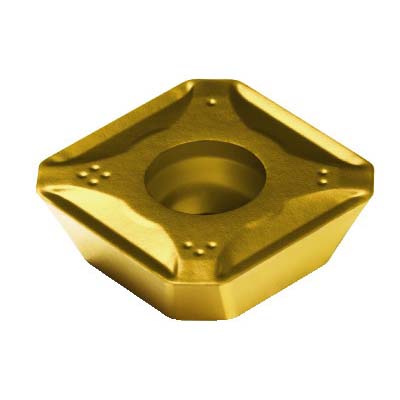

Sandvik Coromant 5853567 CoroMill® 245 Milling Insert, R245-12 T3 M-PL S40T, S-Square, R245..M-PL Insert, Carbide, S40T, R245-12 T3 M-PL S40T
Custom_Product_Images_Illustration
Sandvik Coromant 5853567 CoroMill® 245 Milling Insert, R245-12 T3 M-PL S40T, S-Square, R245..M-PL Insert, Carbide, S40T, R245-12 T3 M-PL S40T
SKU593166
MFGR #5853567
Your Cost: $19.14/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 245, R245..M-PL Insert, S-Square, 0.5275 in Inscribed Circle, 0.1562 in Thickness, 0.5275 in Length, PL Chipbreaker, 0.059 in Corner Radius, 10 deg Positive Rake, 45 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: S40T, ANSI Code: R245-12 T3 M-PL S40T, ISO Code: R245-12 T3 M-PL S40T, Right Hand, Carbide, CVD Coated, Material Grade: S
Sandvik Coromant Milling Insert, Series: CoroMill® 245, R245..M-PL Insert, S-Square, 0.5275 in Inscribed Circle, 0.1562 in Thickness, 0.5275 in Length, PL Chipbreaker, 0.059 in Corner Radius, 10 deg Positive Rake, 45 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: S40T, ANSI Code: R245-12 T3 M-PL S40T, ISO Code: R245-12 T3 M-PL S40T, Right Hand, Carbide, CVD Coated, Material Grade: S
Alternate Catalog Number R245-12T3M-PL S40T ANSI Code R245-12 T3 M-PL S40T Catalog Number 5853567 Corner Radius 0.059 in Country of Origin SE Finish CVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Right Hole Diameter 0.1614 in ISO Code R245-12 T3 M-PL S40T Item Group 350 Lead Angle 45 deg Length 0.5275 in Material Application Heat Resistant Alloys Series CoroMill® 245 Thickness 0.1562 in Type R245..M-PL UPC 11 69826251849 UPC 12 69826251849 Warranty S - Square Width 3.96875 mm Width UOM in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PL Inscribed Circle 0.5275 in Insert Size S40T Insert Style R245..M-PL Manufacturer's Grade S40T Material Carbide Material Grade S Maximum Depth of Cut 3.96875 mm Rake 10 deg Positive Shape S-Square 40 to 60 deg countersunk hole and non-flat surface clamping interface 20 deg clearance 6.5 mm D cutting 2.05 mm L wiper edge 90 deg included 45 deg major cutting edge 10 mm L effective cutting edge 1-side cutting 20 life cycle state 4 corner S cutting edge condition 4 cutting edge Screw clamp mounting
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R245-12T3M-PL S40T |
| ANSI Code | R245-12 T3 M-PL S40T |
| Catalog Number | 5853567 |
| Corner Radius | 0.059 in |
| Country of Origin | SE |
| Finish | CVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1614 in |
| ISO Code | R245-12 T3 M-PL S40T |
| Item Group | 350 |
| Lead Angle | 45 deg |
| Length | 0.5275 in |
| Material Application | Heat Resistant Alloys |
| Series | CoroMill® 245 |
| Thickness | 0.1562 in |
| Type | R245..M-PL |
| UPC 11 | 69826251849 |
| UPC 12 | 69826251849 |
| Warranty | S - Square |
| Width | 3.96875 mm |
| Width UOM | in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PL |
| Inscribed Circle | 0.5275 in |
| Insert Size | S40T |
| Insert Style | R245..M-PL |
| Manufacturer's Grade | S40T |
| Material | Carbide |
| Material Grade | S |
| Maximum Depth of Cut | 3.96875 mm |
| Rake | 10 deg Positive |
| Shape | S-Square |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 20 deg clearance |
| 6.5 mm D cutting |
| 2.05 mm L wiper edge |
| 90 deg included |
| 45 deg major cutting edge |
| 10 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| S cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
