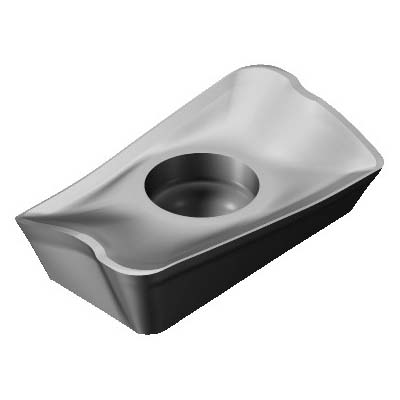

Sandvik Coromant 5853498 CoroMill® 390 Milling Insert, R390-17 04 16M-PM S30T ANSI, L-Rectangle, R390..M-PM Insert, Carbide
R390 Milling Inserts
1234637
MFG #: 5853498
Sandvik Coromant
23.27000
/ ea
Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390..M-PM Insert, L-Rectangle, 0.378 in Inscribed Circle, 0.1874 in Thickness, 0.378 in Width, 0.687 in Length, PM Chipbreaker, 0.063 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: S30T, ANSI Code: R390-17 04 16M-PM S30T, ISO Code: R390-17 04 16M-PM S30T, Right Hand, Carbide, PVD Coated, Material Grade: S
- Features
40 to 60 deg countersunk hole and non-flat surface clamping interface |
19 deg clearance |
15.7 mm D cutting |
0.7 mm L wiper edge |
90 deg major cutting edge |
15.7 mm L effective cutting edge |
1-side cutting |
20 life cycle state |
2 corner |
E cutting edge condition |
2 cutting edge |
Screw clamp mounting |
