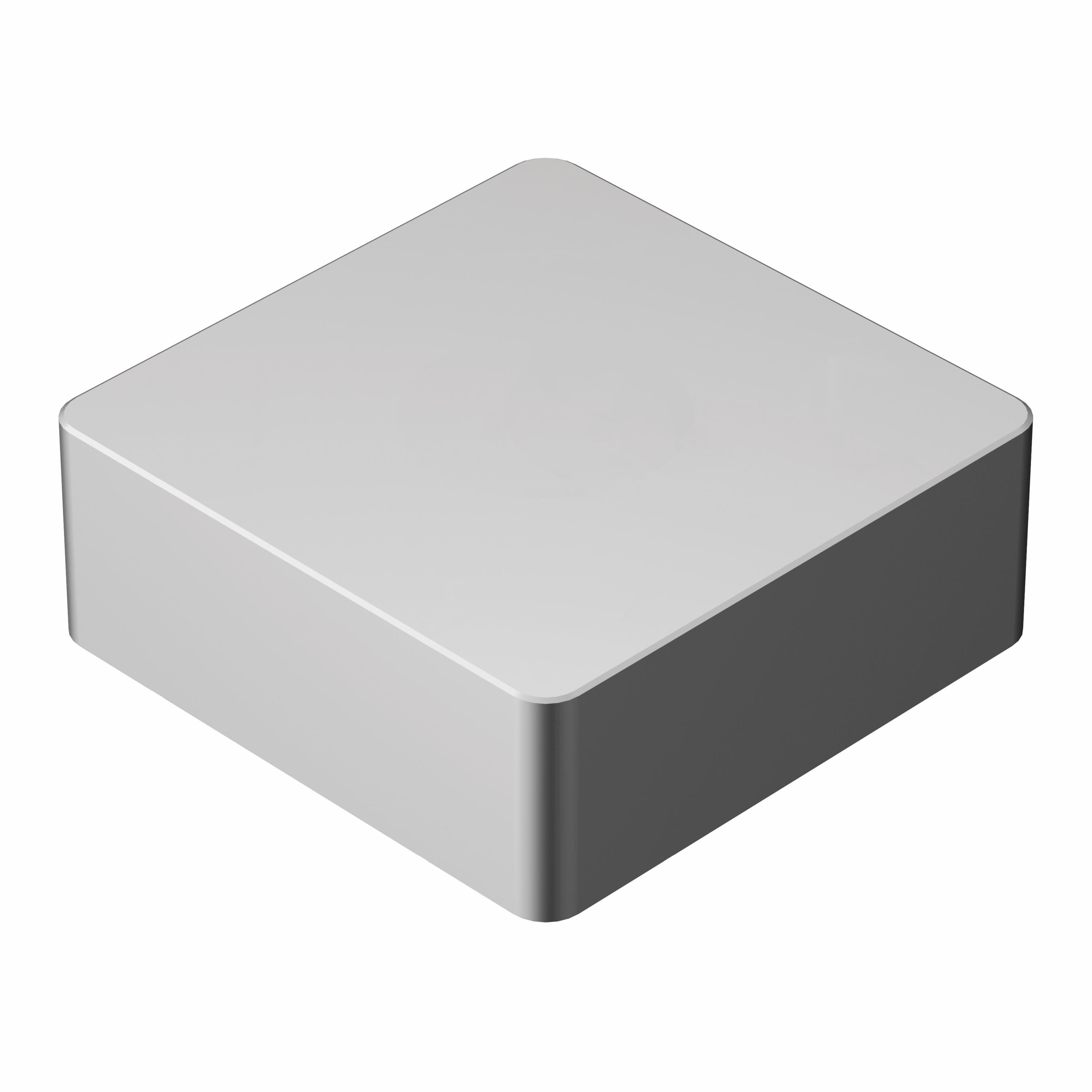

Sandvik Coromant 5782741 T-Max® 2-Sided Turning Insert, SNG432T0820 6190, S-Square, SNGN..S/T Insert, 6190, Carbide
SNGN Turning Inserts
1239831
MFG #: 5782741
Sandvik Coromant
32.83000
/ ea
Sandvik Coromant Turning Insert, 2-Sided, Series: T-Max®, SNGN..S/T Insert, S-Square, 2 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 1/2 in Length, 0.0312 in Corner Radius, Manufacturer's Grade: 6190, ANSI Code: SNG432T0820 6190, ISO Code: SNGN120408T02520 6190, 90 deg Included Angle, Neutral Hand, Carbide, Uncoated, Material Grade: K
- Features
| Exceptional surface finish when turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107 |
| The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish |
| Wiper geometries available for high feeds and high quality surface finish |
| Ground, super sharp insert offer for exceptional surface finish |
| Flat surface clamping interface |
| 20 deg face land |
| 11.9 mm L effective cutting edge |
| G tolerance class |
| 0.15 - 0.5 mm/r cutting feed |
| 20 life cycle state |
| Negative rake |
