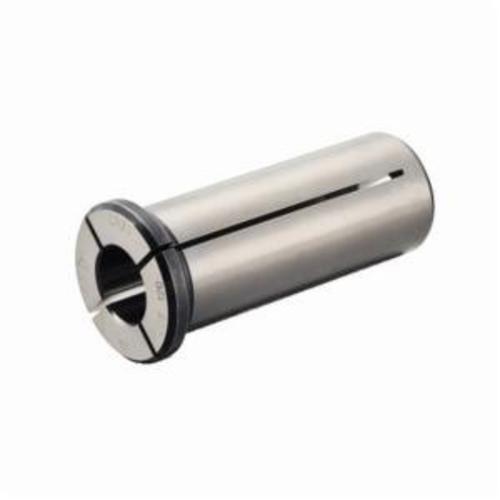

Sandvik Coromant 5760217 CoroGrip®/HydroGrip® Cylindrical Sealed Sleeve Collet, 0.157 in, 2.1259 in OAL, 0.7874 in, 1.1023 in/1.9685 in Clamping Hole, 0.9842 in Body
Collets
1248076
MFG #: 5760217
Sandvik Coromant
230.95000
/ ea
Sandvik Coromant Collet, Cylindrical Sealed Sleeve, Series: CoroGrip®/HydroGrip®, 0.157 in, 0.9842 in Body Dia, 2.1259 in Overall Length, 0.7874 in, 1.1023 in/1.9685 in Clamping Hole Length, ANSI Code: 393.CG-20 04 52, ISO Code: 393.CG-20 04 52, For Use With: Hydraulic Membrane Chucks With Flange
- Features
| 0 deg half taper body |
| Steel body |
| Axial concentric coolant entry |
| 80 bar coolant |
| Axial concentric coolant exit on circle |
| 20 mm Dia shank |
| 4 mm L body |
| 4 mm L functional |
| 50 mm L dead shank |
| 4 mm overhang |
| 393.CG tool style |
| 20 life cycle state |
