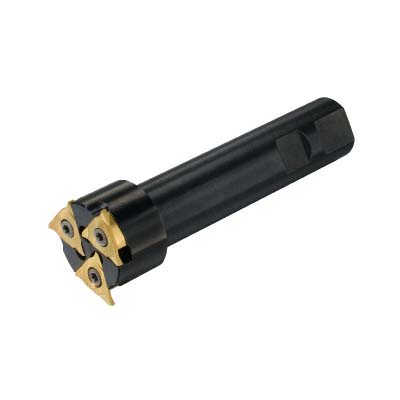

Sandvik Coromant 5758685 CoroMill® 328, 328..Bxx Insert, 1.5354 in Dia, Right Hand, Weldon Shank
Indexable Slotting Cutters
1232313
MFG #: 5758685
Sandvik Coromant
591.19000
/ ea
Sandvik Coromant Groove Milling Cutter, Series: CoroMill® 328, 1.5354 in Cutting Dia, 4.9212 in Overall Length, 328..Bxx Insert, Insert Compatibility: 328R13-130 00-GM, 0.9842 in Shank Dia, Weldon Shank, Right Hand Cutting, ANSI Code: 328-039B25-13M, ISO Code: 328-039B25-13M, Steel
- Features
| 20 life cycle state |
| 32 mm Dia body |
| 0 deg body half taper |
| 2 peripheral and face effective cut edge |
| Without coolant entry |
| 40 - 60 deg insert screw clamping |
| No coolant exit |
| 6.5 Nm torque |
| 23 mm H shank |
| SFW feed direction |
| 90 deg cutting edge |
| 69 mm L body |
| 125 mm L functional |
| 68 mm maximum overhang |
| 19300 r/min |
| 13 mm insert size |
| 3 mm D maximum cutting |
| 25 mm Dia hole |
