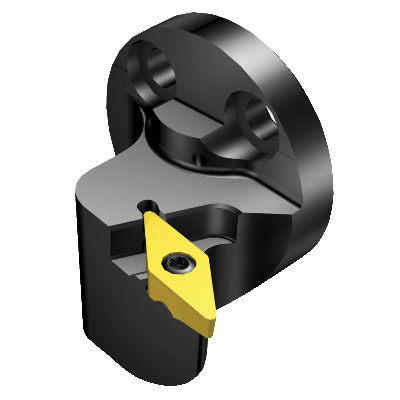

Sandvik Coromant 5755380 CoroTurn® TR Thread Turning Head, 1.0629 in, 1.2165 in OAL, Right Hand, TR-VB1308 Insert
Modular Turning/Profiling Cutting Heads
1249915
MFG #: 5755380
Sandvik Coromant
450.65000
/ ea
Sandvik Coromant Thread Turning Head, Series: CoroTurn® TR, 1.0629 in Head Length/Projection, 1.2165 in Overall Length, V-35 deg Diamond Insert, Insert Compatibility: TR-VB1308, Right Hand Cutting, 0.7874 in Center to Cutting Edge, Steel
- Features
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric entry |
| 10 bar coolant |
| 40 - 60 deg insert screw, rail bottom |
| Axial inclined exit |
| 25 mm Dia connection |
| 35 mm Dia minimum bore |
| 95 deg cutting edge |
| 13 mm insert seat |
| 2 Nm torque |
| TR-SL-V13LBR/L tool style |
| -5 deg lead |
| -5 deg inclination |
| 0 deg rake |
| ANSI Code: TR-SL-V13LBR-25 |
| ISO Code: TR-SL-V13LBR-25 |
