Sandvik Coromant 5751106 CoroTurn 107 Shank Tool, STFCR/L Tool Holder, TCMT 16T308 (MIIDM) and TCMT 3 (2.5)2 (MIIDN) Insert, -1 deg Lead, Rectangle Shank, Left Hand
Indexable Turning Tool Holders
1233571
MFG #: 5751106
Sandvik Coromant
192.81000
/ ea

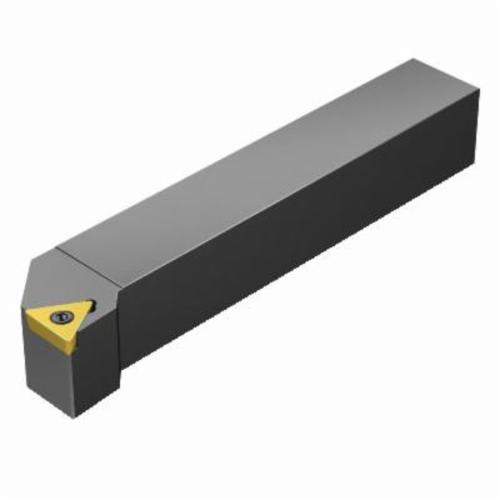

Sandvik Coromant Shank Tool, Series: CoroTurn 107, STFCR/L Tool Holder, 6 in Overall Length, Rectangle Shank, 1 in H x 1 in W Shank, Insert Compatibility: TCMT 16T308 (MIIDM) and TCMT 3 (2.5)2 (MIIDN), 3/8 Insert Seat, Left Hand Cutting, -1 deg Lead Angle, ANSI Code: STFCL 16 3D, ISO Code: STFCL 16 3D, 0 deg Rake, Steel
- Features
| 0 deg body machine side |
| 0 deg body workpiece side |
| Without coolant entry |
| No coolant exit |
| 0 deg inclination |
| 91 deg cutting edge |
| 0 deg maximum ramping |
| 20 life cycle state |
| 20.7 mm maximum overhang |
| 3 Nm torque |
| 31.75 mm W functional |
| 40 - 60 deg insert screw clamping |
| T - Triangle insert |
| ANSI Code: STFCL 16 3D |
| ISO Code: STFCL 16 3D |
