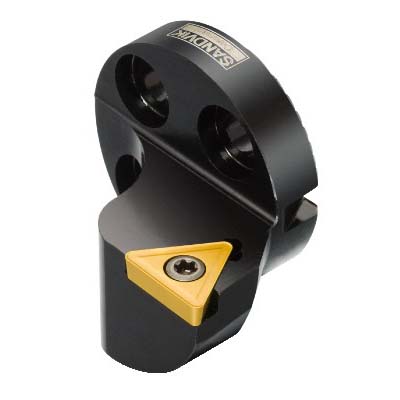

Sandvik Coromant 5746666 CoroTurn® 107 Turning Head, 1.5748 in, 1.8582 in OAL, Right Hand, TCMT 16T308 Insert
Modular Turning/Profiling Cutting Heads
1229112
MFG #: 5746666
Sandvik Coromant
569.45000
/ ea
Sandvik Coromant Turning Head, Series: CoroTurn® 107, 1.5748 in Head Length/Projection, 1.8582 in Overall Length, T-Triangle Insert, Insert Compatibility: TCMT 16T308, Right Hand Cutting, 1.6929 in Center to Cutting Edge, Steel
- Features
| 20 life cycle state |
| 0 deg body workpiece side |
| Without coolant entry |
| No coolant exit |
| 60 connection size |
| 0 deg body machine side |
| ISO: TCMT 16T308 interface identifiers |
| 60 mm Dia connection |
| 80 mm Dia minimum bore |
| 0 deg rake orthogonal |
| 91 deg cutting edge |
| -6 deg inclination |
| 40 mm maximum overhang |
| TCMT 16 T3 08, TCMT 3(2.5)2 master insert |
| -1 deg lead angle |
| 0 deg maximum ramping |
| 3 Nm torque |
| 40 - 60 deg insert screw clamping |
| 16 mm insert seat |
