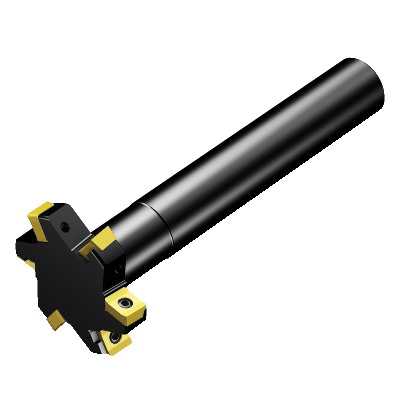

Sandvik Coromant 5745279 CoroMill® 331 Full Side and Face Disc Milling Cutter, 3.1496 in Cutting, 1.2598 in Shank, 5.9055 in OAL, R331.35..Axx Insert, 0.906 in Max Depth of Cut
Indexable Face Mills
1234934
MFG #: 5745279
Sandvik Coromant
1076.99000
/ ea
Sandvik Coromant Disc Milling Cutter, Full Side and Face, Series: CoroMill® 331, 3.1496 in Cutting Dia, 5.9055 in Overall Length, 0.906 in Maximum Depth of Cut, R331.35..Axx Insert, 8 Inserts, Insert Compatibility: N/L331.1A-04RE0.20-1.54, N/R331.1A-04RE0.20-1.54, 1.2598 in Shank Dia, Right Hand Cutting, 90 deg Cutting Angle, ANSI Code: R331.35-080A32CM060, ISO Code: R331.35-080A32CM060, Steel
- Features
| 40 - 60 deg insert screw clamping |
| Without coolant entry |
| Differential cutting pitch |
| 6 mm W cutting |
| 79 mm Dia cutting face contact |
| 20 life cycle state |
| 150 mm L functional |
| 89 mm maximum overhang |
| 19000 r/min |
| 0.8 Nm torque |
