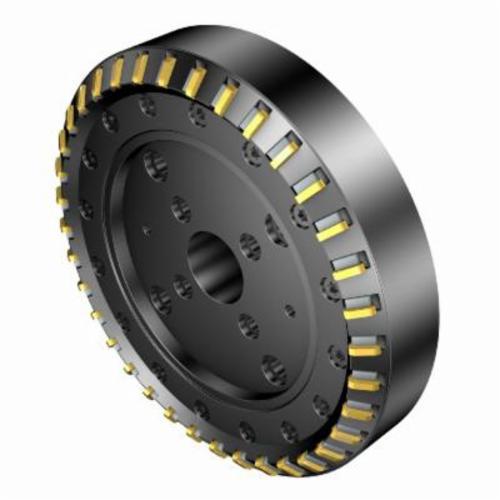

Sandvik Coromant 5744008 Auto Roughing Face Milling Cutter, 3.937 in Cutting, 1-1/2 in Shank, 2.4803 in OAL, R/L260.3 Insert, 0.2362 in Max Depth of Cut
Indexable Face Mills
1230398
MFG #: 5744008
Sandvik Coromant
3313.89000
/ ea
Sandvik Coromant Face Milling Cutter, Series: Auto Roughing, 3.937 in Cutting Dia, 2.4803 in Overall Length, 0.2362 in Maximum Depth of Cut, R/L260.3 Insert, 14 Inserts, Insert Compatibility: TNEF 1204AN, 1-1/2 in Shank Dia, Right Hand Cutting, 45 deg Cutting Angle, ANSI Code: R260.3-100M-10, ISO Code: R260.3-100M-10, Steel
- Features
120.2 mm Dia body |
Without coolant entry |
Hexagon socket head cap screw adaptive interface |
Top clamping, spring loaded |
1550 r/min |
20 life cycle state |
112 mm Dia maximum cutting |
16.08 mm W keyway |
