Sandvik Coromant 5743795 CoroMill® 216F, R216F..AxxS Insert, 0.7874 in Cutting, Right Hand, 0.118 in Max Depth of Cut, Steel
Indexable End Mills
1244464
MFG #: 5743795
Sandvik Coromant
590.03000
/ ea

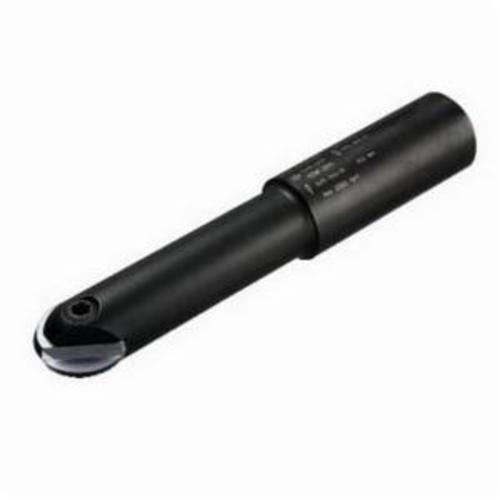

Sandvik Coromant Ball Nose Milling Cutter, Series: CoroMill® 216F, 0.7874 in Cutting Dia, 7.5196 in Overall Length, 0.118 in Maximum Depth of Cut, R216F..AxxS Insert, 1 Inserts, Insert Compatibility: R216F-20.., 0.9842 in Shank Dia, Cylindrical Shank, ANSI Code: R216F-20A25S-115, ISO Code: R216F-20A25S-115, Right Hand Cutting, Steel
- Features
| 20 life cycle state |
| Cylindrical shank machine side adaptive interface without clamping |
| 17 mm Dia body |
| 1.75 deg body half taper |
| Without coolant entry |
| 40 - 60 deg insert screw clamping |
| 0 deg rake orthogonal |
| 34 mm L body |
| S row identifier |
| 191 mm L functional |
| R insert shape |
| 85 deg ramping |
| 18400 r/min |
| 20 mm insert seat |
| 5 Nm torque |
| 2 face/peripheral effective cutting edges |
| R216F..AxxS tool style |
| 135 mm overhang |
| 82.2 mm L usable |
