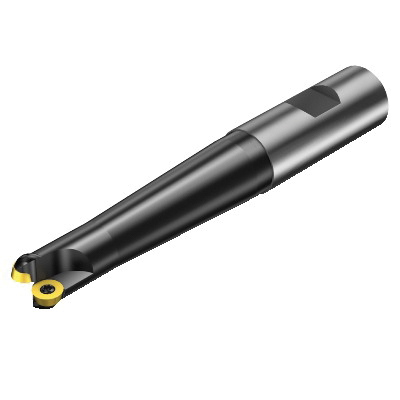

Sandvik Coromant 5739525 CoroMill® 300 Face Milling Cutter, 0.2244 in Cutting, 5/8 in Shank, 4.0748 in OAL, RA300..Mxx Insert
Indexable Face Mills
1255002
MFG #: 5739525
Sandvik Coromant
290.81000
/ ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 300, 0.2244 in Cutting Dia, 4.0748 in Overall Length, 0.1377 in Maximum Depth of Cut, RA300..Mxx Insert, 2 Inserts, Insert Compatibility: R300-0720, 5/8 in Shank Dia, Right Hand Cutting, ANSI Code: RA300-013M16-07L, ISO Code: RA300-013M16-07L, Steel
- Features
| 11.1 mm Dia x 21 mm L body |
| 1.4 mm D plunge |
| Without coolant entry |
| 40 - 60 deg insert screw clamping interface |
| 12.7 mm Dia maximum cutting |
| 14.22 mm h shank |
| 37.7 mm L usable |
| 50.8 mm overhang |
| 20 deg maximum ramping |
| 35200 r/min cutting feed |
| 0.9 Nm torque |
| 20 life cycle state |
| Weldon (DIN1835-B / DIN6535-HB) adaptive interface |
