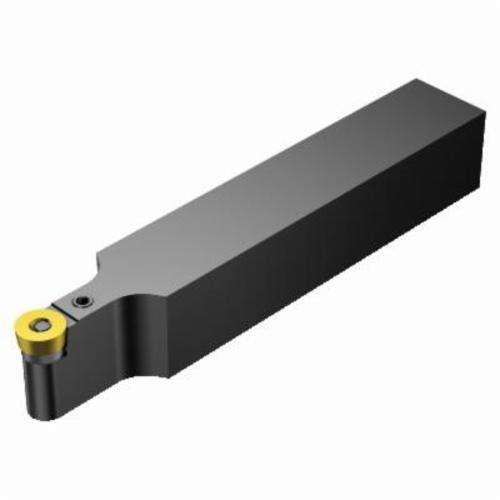

Sandvik Coromant 5738964 T-Max P Shank Tool, PRDCN Tool Holder, RCMX 120400 (MIIDM) and RCMX 120400 (MIIDN) Insert
Indexable Turning Tool Holders
1236952
MFG #: 5738964
Sandvik Coromant
177.71000
/ ea
Sandvik Coromant Shank Tool, Series: T-Max P, PRDCN Tool Holder, 5.9055 in Overall Length, Rectangle Shank, 0.9842 in H x 0.9842 in W Shank, Insert Compatibility: RCMX 120400 (MIIDM) and RCMX 120400 (MIIDN), 0.472 Insert Seat, Neutral Cutting, ANSI Code: PRDCN 2525M 12, ISO Code: PRDCN 2525M 12, 0 deg Rake, Steel
- Features
| 0 deg body machine side |
| 0 deg body workpiece side |
| Without coolant entry |
| No coolant exit |
| 0 deg inclination |
| 90 deg maximum ramping |
| 20 life cycle state |
| 33 mm maximum overhang |
| 4 Nm torque |
| 18.5 mm W functional |
| 28 mm L usable |
| Lever hole clamping |
| R - Round insert |
| ANSI Code: PRDCN 2525M 12 |
| ISO Code: PRDCN 2525M 12 |
