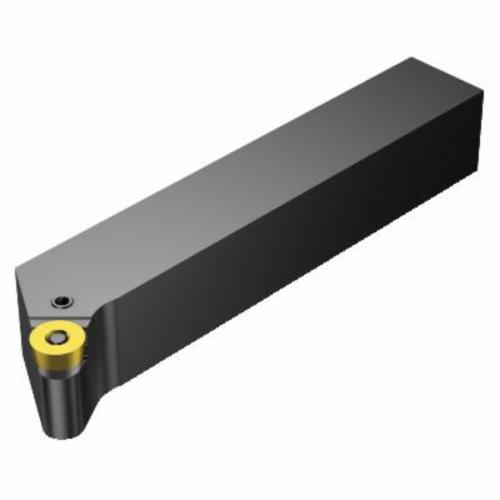

Sandvik Coromant 5738962 T-Max P Shank Tool, PRGCR/L Tool Holder, RCMX 120400 (MIIDM) and RCMX 120400 (MIIDN) Insert
Indexable Turning Tool Holders
1236969
MFG #: 5738962
Sandvik Coromant
168.41000
/ ea
Sandvik Coromant Shank Tool, Series: T-Max P, PRGCR/L Tool Holder, 4.9212 in Overall Length, Rectangle Shank, 0.7874 in H x 0.7874 in W Shank, Insert Compatibility: RCMX 120400 (MIIDM) and RCMX 120400 (MIIDN), 0.472 Insert Seat, Right Hand Cutting, ANSI Code: PRGCR 2020K 12, ISO Code: PRGCR 2020K 12, 0 deg Rake, Steel
- Features
| 0 deg body machine side |
| 0 deg body workpiece side |
| Without coolant entry |
| No coolant exit |
| 0 deg inclination |
| 27 deg maximum ramping |
| 20 life cycle state |
| 20.8 mm maximum overhang |
| 4 Nm torque |
| 25 mm W functional |
| Lever hole clamping |
| R - Round insert |
| ANSI Code: PRGCR 2020K 12 |
| ISO Code: PRGCR 2020K 12 |
