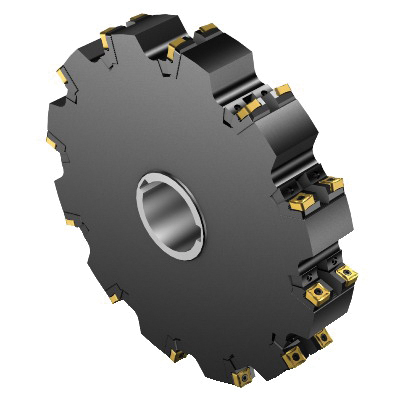

Sandvik Coromant 5738644 CoroMill® 331 Adjustable Double Half Side/Face Disc Milling Cutter, 12 in Cutting, 2-1/2 in Shank, 1.37 in OAL, N331.52..Txx Insert, 4.311 in Max Depth of Cut
Indexable Face Mills
1236533
MFG #: 5738644
Sandvik Coromant
5990.87000
/ ea
Sandvik Coromant Disc Milling Cutter, Adjustable Double Half Side/Face, Series: CoroMill® 331, 12 in Cutting Dia, 1.37 in Overall Length, 4.311 in Maximum Depth of Cut, N331.52..Txx Insert, 40 Inserts, Insert Compatibility: N/L331.1A-11RE0.20-1.54, N/R331.1A-11RE0.20-1.54, 2-1/2 in Shank Dia, Neutral Cutting, 90 deg Cutting Angle, ANSI Code: N331.52-305T63NM, ISO Code: N331.52-305T63NM, Steel
- Features
| 40 - 60 deg insert screw clamping |
| Without coolant entry |
| 30.8102 - 33.8074 mm W cutting |
| 303.2 mm Dia cutting face contact |
| 83.9978 mm Dia hub |
| 2-drive |
| 15.875 mm W keyway |
| 20 life cycle state |
| 32.8041 mm L functional |
| 32.8041 mm maximum overhang |
| 10.6 mm W pre-machined slot |
| 0 deg maximum ramping |
| 7600 r/min |
| 3 Nm torque |
