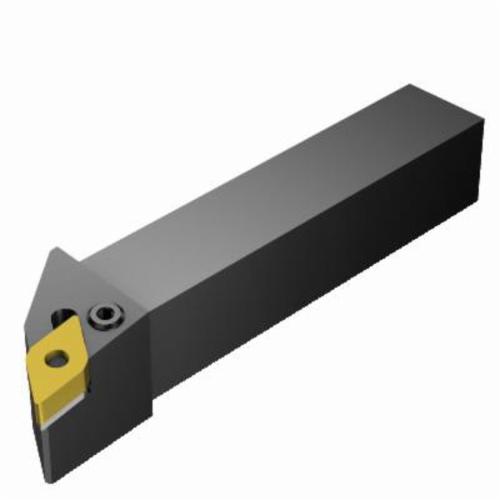

Sandvik Coromant 5738408 T-Max P Shank Tool, PDJNR/L Tool Holder, DNMG 110408 (MIIDM) and DNMG 332 (MIIDN) Insert, -3 deg Lead, Rectangle Shank, Left Hand
Indexable Turning Tool Holders
1237010
MFG #: 5738408
Sandvik Coromant
150.99000
/ ea
Sandvik Coromant Shank Tool, Series: T-Max P, PDJNR/L Tool Holder, 3.937 in Overall Length, Rectangle Shank, 0.63 in H x 0.63 in W Shank, Insert Compatibility: DNMG 110408 (MIIDM) and DNMG 332 (MIIDN), 3/8 Insert Seat, Left Hand Cutting, -3 deg Lead Angle, ANSI Code: PDJNL 1616H 11, ISO Code: PDJNL 1616H 11, -6 deg Rake, Steel
- Features
| 0 deg body machine side |
| 0 deg body workpiece side |
| Without coolant entry |
| No coolant exit |
| -7 deg inclination |
| 93 deg cutting edge |
| 27 deg maximum ramping |
| 20 life cycle state |
| 29.7 mm maximum overhang |
| 2 Nm torque |
| 20 mm W functional |
| Lever hole clamping |
| D - 55 deg diamond insert |
| ANSI Code: PDJNL 1616H 11 |
| ISO Code: PDJNL 1616H 11 |
