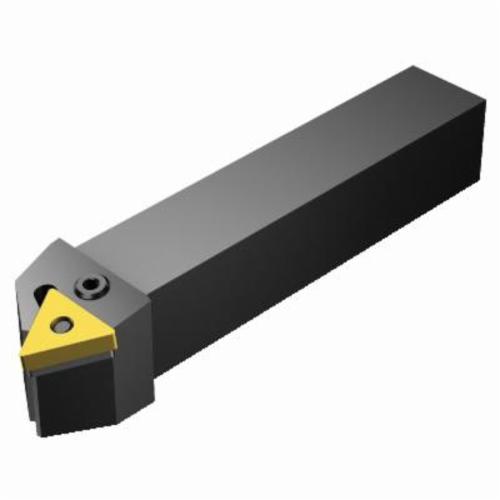

Sandvik Coromant 5737768 T-Max P Shank Tool, PTTNR/L Tool Holder, TNMG 110304 (MIIDM) and TNMG 221 (MIIDN) Insert, 30 deg Lead, Rectangle Shank, Right Hand
Indexable Turning Tool Holders
1236452
MFG #: 5737768
Sandvik Coromant
116.10000
/ ea
Sandvik Coromant Shank Tool, Series: T-Max P, PTTNR/L Tool Holder, 2.7559 in Overall Length, Rectangle Shank, 0.3937 in H x 0.3937 in W Shank, Insert Compatibility: TNMG 110304 (MIIDM) and TNMG 221 (MIIDN), 1/4 Insert Seat, Right Hand Cutting, 30 deg Lead Angle, ANSI Code: PTTNR 1010E 11, ISO Code: PTTNR 1010E 11, -6 deg Rake, Steel
- Features
| 0 deg body machine side |
| 0 deg body workpiece side |
| Without coolant entry |
| No coolant exit |
| -6 deg inclination |
| 60 deg cutting edge |
| 30 deg maximum ramping |
| 20 life cycle state |
| 19.1 mm maximum overhang |
| 1.2 Nm torque |
| 9 mm W functional |
| Lever hole clamping |
| T - Triangle insert |
| ANSI Code: PTTNR 1010E 11 |
| ISO Code: PTTNR 1010E 11 |
