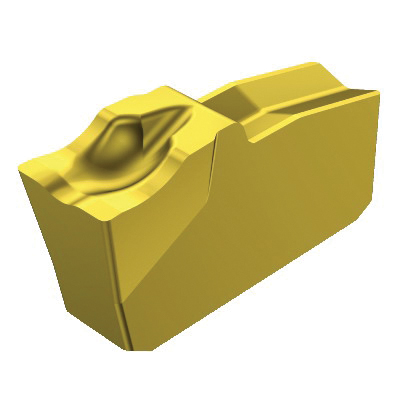

Sandvik Coromant 5737377 T-Max® Q-Cut, N151.2-400-5F 235, N151.2-5F Insert, Carbide, 235, N151.2-400-5F 235
N151 Cut-off & Parting Inserts
1249563
MFG #: 5737377
Sandvik Coromant
22.08000
/ ea
Sandvik Coromant Parting Insert, Series: T-Max® Q-Cut, N151.2-5F Insert, 0.3191 in Thickness, 0.1574 in Width, 0.267 in Length, 5F Chipbreaker, 0.007 in Corner Radius, Manufacturer's Grade: 235, ANSI Code: N151.2-400-5F 235, ISO Code: N151.2-400-5F 235, Neutral Hand, Carbide, CVD Coated, Material Grade: M/P
- Features
| 7 deg clearance |
| 20 life cycle state |
| 0 deg body machine side |
| Finishing operation |
| Concave clamping |
| -0.03 mm W cutting lower tolerance |
| 0.03 mm W cutting upper tolerance |
| -0.05 mm corner radius lower tolerance |
| 0.05 mm corner radius upper tolerance |
| E cutting edge condition |
| 0 deg lead |
| 1 edge |
| V or rail clamp with screw mounting |
| 0.04 - 0.18 mm/r cutting feed |
| 7 insert mounting style code |
| 40 insert seat size code |
