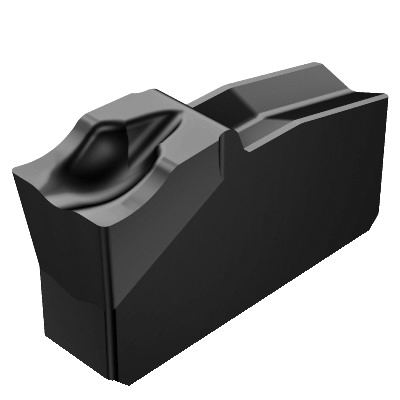

Sandvik Coromant 5736913 T-Max® Q-Cut, N151.2-200-5E 3020, N151.2-5E Insert, Carbide, 3020, N151.2-200-5E 3020
N151 Cut-off & Parting Inserts
1230527
MFG #: 5736913
Sandvik Coromant
13.63000
/ ea
Sandvik Coromant Parting Insert, Series: T-Max® Q-Cut, N151.2-5E Insert, 0.2211 in Thickness, 0.0078 in Width, 5E Chipbreaker, 0.007 in Corner Radius, Manufacturer's Grade: 3020, ANSI Code: N151.2-200-5E 3020, ISO Code: N151.2-200-5E 3020, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
- Features
| 7 deg clearance |
| 40 life cycle state |
| 0 deg body machine side |
| Medium operation |
| Concave clamping |
| 0 mm cutting width lower tolerance |
| 0.25 mm W cutting upper tolerance |
| -0.1 mm corner radius lower tolerance |
| 0.1 mm corner radius upper tolerance |
| E cutting edge condition |
| 0.03 - 0.13 mm/r cutting feed |
| 7 insert mounting style code |
| 20 insert seat size code |
