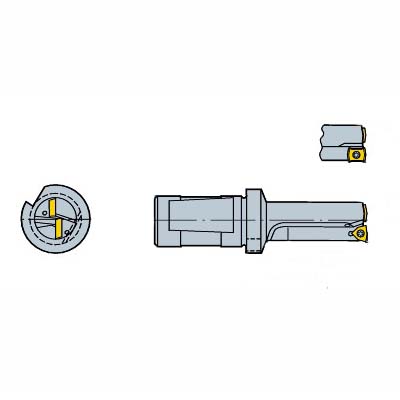

Sandvik Coromant 5735326 T-Max® U Insert Drill, 0.9055 in Drill, 0.9842 in Shank, 5.0393 in AOL, 2.6948 in D Maximum Drill, 2.97609
Indexable Drills
1236221
MFG #: 5735326
Sandvik Coromant
530.75000
/ ea
Sandvik Coromant Insert Drill, Series: T-Max® U, 0.9055 in Drill, 0.9842 in Shank Dia, 2.6948 in Maximum Drill Depth, 5.0393 in Overall Length, 2.97609 Drill Depth by Dia Ratio, Insert Compatibility: LCMX 04.. (MIIDM) and LCMX 04.. (MIIDM), 2.6948 in Flute Length
- Features
| Centre and periphery insert|Geometries and grades for all materials|Wiper geometry for best surface finish |
| 23 mm Dia body |
| 3.45 mm L point |
| 12000 r/min |
| +/- 0.2 mm achievable hole tolerance |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| GSK flute |
| 0 deg neutral helix flute |
| 0 deg rake orthogonal |
| 0 deg inclination, 2 flutes |
| 79 deg cutting edge |
| 74.5 mm L chip flute |
| 40 life cycle state |
| 75 mm L steel body |
| L416.1 tool style |
| ANSI Code: L416.1-0230-20-05 |
