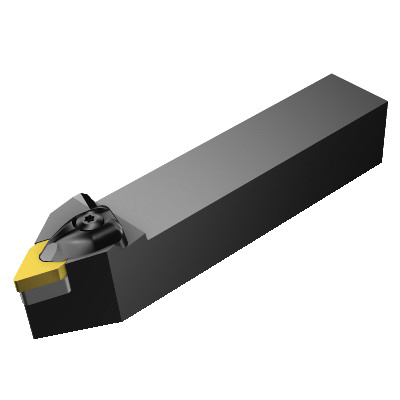

Sandvik Coromant 5731242 T-Max P Turning Shank Tool, DDPNN Tool Holder, DNMG 15 04 08 Insert, 27.5 deg Lead, Rectangle Shank, Neutral
Indexable Turning Tool Holders
1174716
MFG #: 5731242
Sandvik Coromant
161.43000
/ ea
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DDPNN Tool Holder, 6 in Overall Length, Rectangle Shank, 1 in H x 1 in W Shank, Insert Compatibility: DNMG 15 04 08, 1/2 Insert Seat, Neutral Cutting, 27.5 deg Lead Angle, ANSI Code: DDPNN 16 4D, ISO Code: DDPNN 16 4D, -5 deg Rake, Steel
- Features
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Without coolant entry |
| Floating wedge, RC hole |
| No coolant exit |
| 62.5 deg cutting edge |
| -9 deg inclination |
| 40.894 mm maximum overhang |
| 57 deg ramping |
| D insert shape |
| 3.9 Nm torque |
| 25.4 mm H functional |
| 12.7 mm W functional |
| 152.4 mm L functional |
