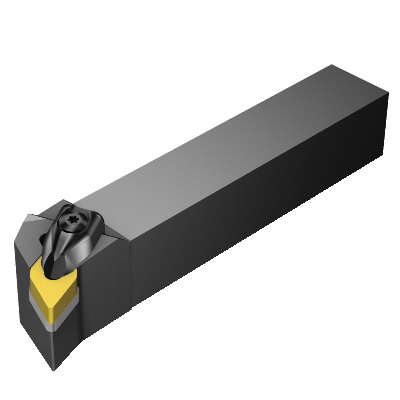

Sandvik Coromant 5731143 T-Max P Turning Shank Tool, DDHNR/L Tool Holder, DNMG 15 06 08 Insert, -17.5 deg Lead, Rectangle Shank, Left Hand
Indexable Turning Tool Holders
1228521
MFG #: 5731143
Sandvik Coromant
238.10000
/ ea
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DDHNR/L Tool Holder, 6.6929 in Overall Length, Rectangle Shank, 1.2598 in H x 1.2598 in W Shank, Insert Compatibility: DNMG 15 06 08, 1/2 Insert Seat, Left Hand Cutting, -17.5 deg Lead Angle, ANSI Code: DDHNL 3232P 15, ISO Code: DDHNL 3232P 15, -6 deg Rake, Steel
- Features
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Without coolant entry |
| Floating wedge, RC hole |
| No coolant exit |
| 107.5 deg cutting edge |
| -7 deg inclination |
| 36.1 mm maximum overhang |
| 12.5 deg ramping |
| D insert shape |
| 3.9 Nm torque |
| 32 mm H functional |
| 40 mm W functional |
| 170 mm L functional |
