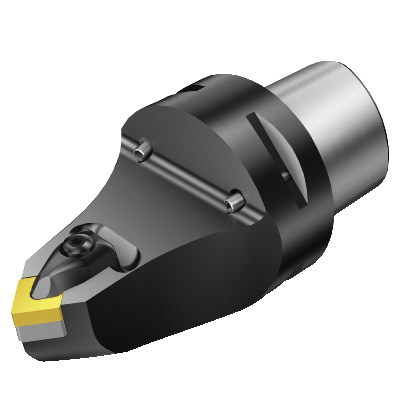

Sandvik Coromant 5729243 T-Max® P Turning Cutting Unit, 4.5275 in, 6.0236 in OAL, Neutral, CNMG 120408 Insert
Modular Turning/Profiling Cutting Heads
926299
MFG #: 5729243
Sandvik Coromant
591.75000
/ ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 4.5275 in Head Length/Projection, 6.0236 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CNMG 120408, Neutral Cutting, Steel
- Features
| 45 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 10 bar coolant |
| Floating wedge, RC hole |
| Decentral coolant exit with nozzles, adjustable |
| 63 mm Dia connection |
| 50 deg cutting edge |
| -6 deg inclination |
| 45 deg ramping |
| 3.9 Nm torque |
| 1/2 in insert seat size |
| -5 deg cutting edge |
| 3/16 in THK insert |
| 115 mm maximum overhang |
| 40 deg Negative |
| -6 deg rake |
| Bolt and segment clamping adaptive interface |
| ANSI Code: C6-DCMNN-00115-12 |
