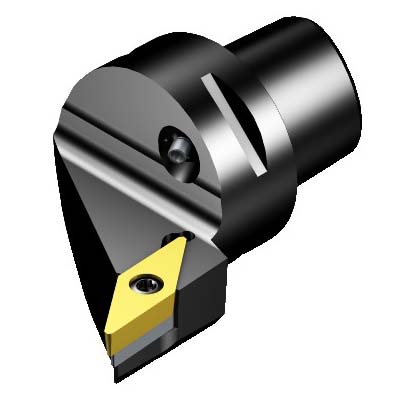

Sandvik Coromant 5727854 CoroTurn® 107 Turning Cutting Unit, 1.9685 in, 2.9133 in OAL, Right Hand, VBMT 160408 and VCMT 160408 Insert

Modular Turning/Profiling Cutting Heads
797820 MFG #: 5727854
Sandvik Coromant
330.00000 / ea
Sandvik Coromant Turning Cutting Unit, Series: CoroTurn® 107, 1.9685 in Head Length/Projection, 2.9133 in Overall Length, V-35 deg Diamond Insert, Insert Compatibility: VBMT 160408 and VCMT 160408, Right Hand Cutting, 1.0629 in Center to Cutting Edge, Steel
QTY
  • Features
0 deg body machine side
20 life cycle state
0 deg body workpiece side
Axial concentric and radial coolant entry
10 bar coolant
40 - 60 deg insert screw clamping
Decentral coolant exit with nozzles, adjustable
40 mm Dia connection
93 deg cutting edge
0 deg inclination
50 deg ramping
3 Nm torque
3/8 in insert seat size
3/16 in THK insert
-3 deg cutting edge
50 mm maximum overhang
-3 deg lead
0 deg positive rake
Bolt and segment clamping adaptive interface
ANSI Code: C4-SVJBR-27050-16
