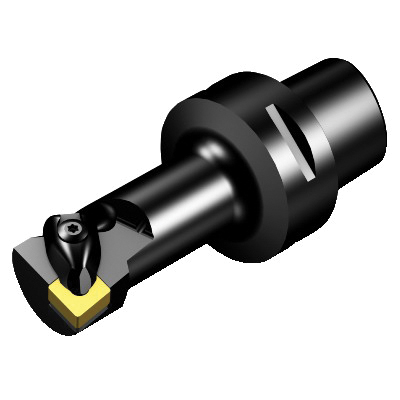

Sandvik Coromant 5727528 T-Max® P Turning Cutting Unit, 3.1496 in, 4.0944 in OAL, Right Hand, CNMG 090308 Insert
Modular Turning/Profiling Cutting Heads
661010
MFG #: 5727528
Sandvik Coromant
389.00000
/ ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 3.1496 in Head Length/Projection, 4.0944 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CNMG 090308, Right Hand Cutting, 0.5118 in Center to Cutting Edge, Steel
- Features
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| 20 mm Dia body |
| Axial concentric and radial coolant entry |
| 10 bar coolant |
| Floating wedge, RC hole |
| Axial inclined coolant exit with nozzle, adjustable |
| 40 mm Dia connection |
| 25 mm Dia minimum bore |
| 95 deg cutting edge |
| -14 deg inclination |
| 57 mm L usable |
| 0 deg ramping |
| 1.7 Nm torque |
| 3/8 in insert seat size |
| 80 mm maximum overhang |
| -5 deg lead |
| -6 deg rake |
| Bolt and segment clamping adaptive interface |
