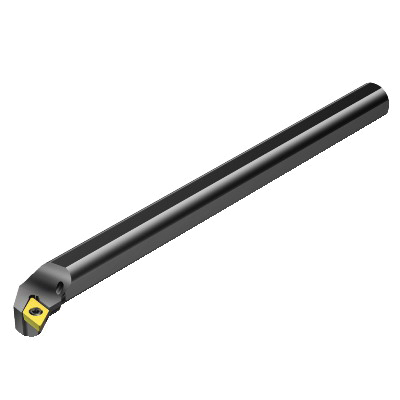

Sandvik Coromant 5722391 CoroTurn® 111 Boring Bar, 1.2598 in Min, 11.811 in OAL, Left Hand
Indexable Boring Bars
1247700
MFG #: 5722391
Sandvik Coromant
298.50000
/ ea
Sandvik Coromant Boring Bar, Series: CoroTurn® 111, 1.2598 in Minimum Bore Dia, 11.811 in Overall Length, 0.9842 in Shank Dia, Left Hand Cutting, Insert Compatibility: DPMT 11 T3 08, D-55 deg Diamond Insert, Steel
- Features
| Secure insert clamping|Excellent repeatability|Free chip flow|Low cutting forces|Excellent edge strength|11 deg clearance angle|Positive insert shape|Screw clamping ensures stability and unobstructed chip flow|Tools with high pressure coolant|Insert geometries and grades for all materials|Internal turning with long overhangs or unstable conditions |
| Cylindrical shank with 3 flats adaptive interface |
| 0 deg body at machine side and workpiece side |
| 25 mm Dia body |
| Axial concentric coolant entry |
| 10 bar coolant |
| 40 - 60 insert screw clamping interface |
| Axial inclined coolant exit |
| 0 deg orthogonal rake |
| 23 mm H shank |
| 93 deg cutting edge |
| 2 deg inclination |
| 300 mm L functional |
| 37.5 - 100 mm overhang |
| -3 deg lead |
| 27 deg maximum ramping |
| 3 Nm torque |
| A..SDUPR/L style |
| 17 mm W functional |
| 4.5 mm W usable |
