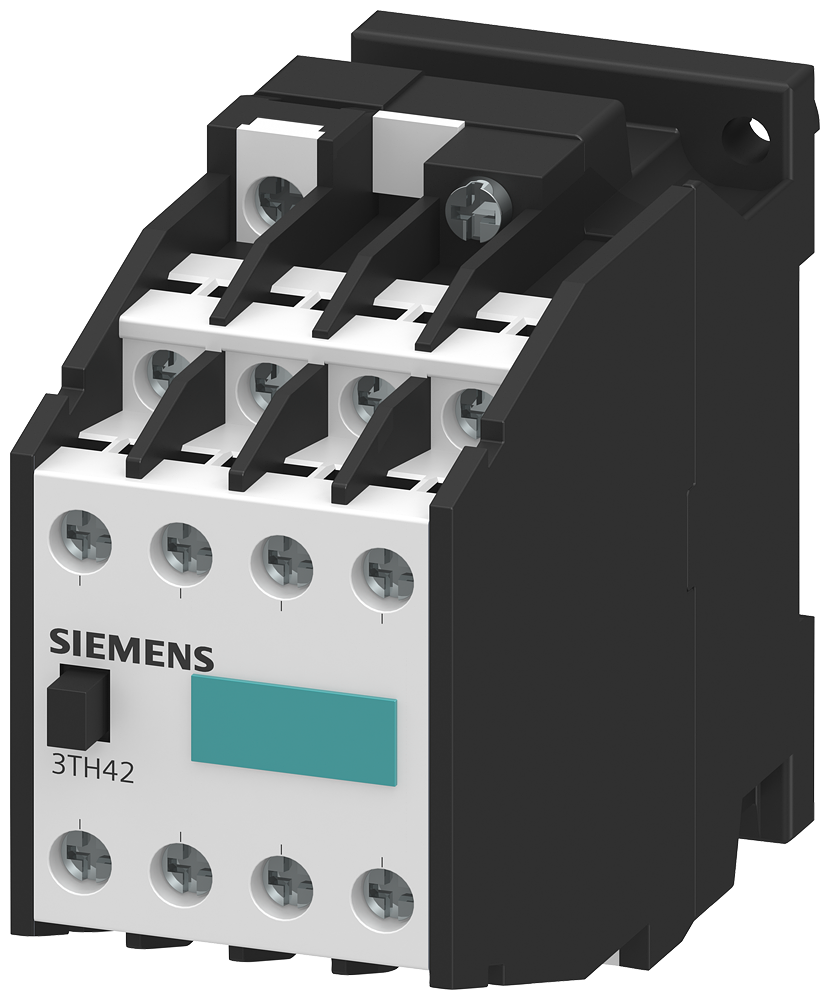

SIRIUS 3TH4244-0AK6 Contactor Control Relay, 4NO-4NC Contact Form, 110/120 VAC Coil
Control Relays
15257
MFG #: 3TH4244-0AK6
Siemens
414.00000
/ ea
SIEMENS 3TH4244-0AK6 120 RELAY 4NO-4NC
- 3D Rendering URL - G_IC03_XX_18376V.pdf(3D Rendering URL)
- Catalog URL - SIRIUS_3RH2122_1AB00_Catalog.pdf(Catalog URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet URL - 10991_3OZIUB5AMYHSTL01.pdf(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=3TH4244-0AK6&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=3TH4244-0AK6&language=en(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- Features
| 4 NO 4NC contacts |
| High contact stability at low voltages and currents as a result of double break contacts |
| Contactor relays can be equipped with RC elements, varistors, diodes or diode assemblies (combination of a diode and a Zener diode) for damping opening surges |
| The surge suppressors can be mounted directly on the coil |
| The off delay times of the NO contacts and the on delay times of the NC contacts increase if the contactor coils are attenuated against voltage peaks |
| 10 A at 230 VAC/6 A at 400 VAC AC-15 contact rating |
