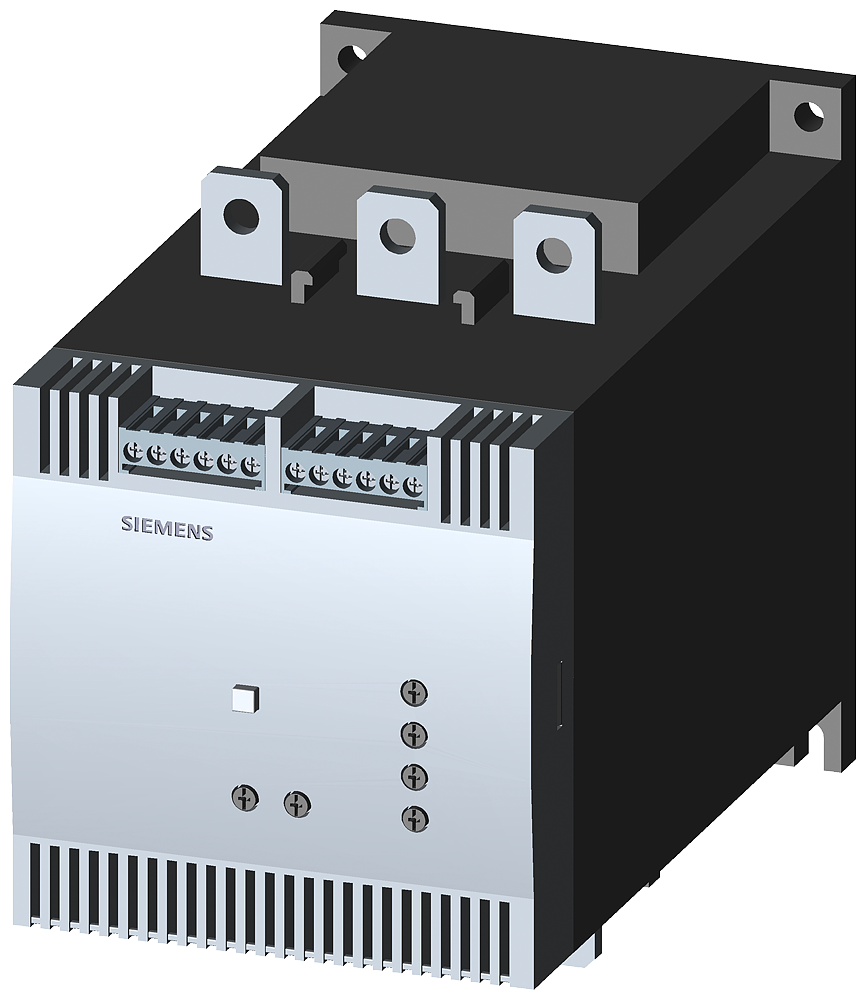

• Features
150 hp at 460/480 VAC, 200 hp at 575/600 VAC
This not only saves space in the control cabinet and on the standard mounting rail but also does away completely with the wiring work needed for wye-delta starters
This is notable in particular for higher motor ratings which are only rarely available as fully wired solutions
Compact dimensions, short start up times, easy wiring and fast commissioning make themselves felt as clear-cut cost advantages
The bypass contacts of these softstarters are protected during operation by an integrated solid state arc quenching system
The new series of devices comes with the polarity balancing control method, which is designed to prevent direct current components in 2-phase controlled softstarters
It leaves the set start ramp during the ramp-up the ramp gradient is fixed by the starting voltage and the ramp time as soon as the selected current limit is reached
From this moment the voltage of the soft starter is controlled so that the current supplied to the motor remains constant, This process is ended either by completion of the motor ramp-up or by tripping by the intrinsic device protection or the motor overload protection
As the result of this function the actual motor ramp-up can well take longer than the ramp time selected on the soft starter
Device versions with thermistor motor protection evaluation are available up to a rating of 55 kW (at 400 V), A thermoclick measuring probe can be connected directly, as can a PTC of type A
Thermal overloading of the motor, open circuits and short circuits in the sensor circuit all result in the direct disconnection of the soft starter, The new series of devices comes with the polarity balancing control method, which is designed to prevent direct current components in two-phase controlled soft starters
Controlling the power semiconductors results not only in this asymmetry, however, but also in the previously mentioned direct current components which can cause severe noise generation on the motor at starting voltages of less than 50 %
The control method used for these soft starters eliminates these direct current components during the ramp-up phase and prevents the braking torque which they can cause. It creates a motor ramp-up that is uniform in speed, torque and current rise, thus permitting a particularly gentle, two-phase starting of the motors
The built-in auxiliary contact ensures user-friendly control and possible further processing within the system
Cost-efficient operation Reduction of current peaks, Avoidance of mains voltage fluctuations during starting, Reduced load on the power supply network, Reduction of the mechanical load in the operating mechanism
Considerable space savings and reduced wiring compared with conventional starters, Maintenance-free switching, Very easy handling
Soft starting/ramp-down, voltage ramp, integral bypass contact system, intrinsic device protection, motor overload protection, thermistor motor protection and adjustable current limiting applications
screw and snap-on mounting
230 A at 40 deg C Current
150 hp at 460/480 V 205 A, 200 hp at 575/600 V 205 A
