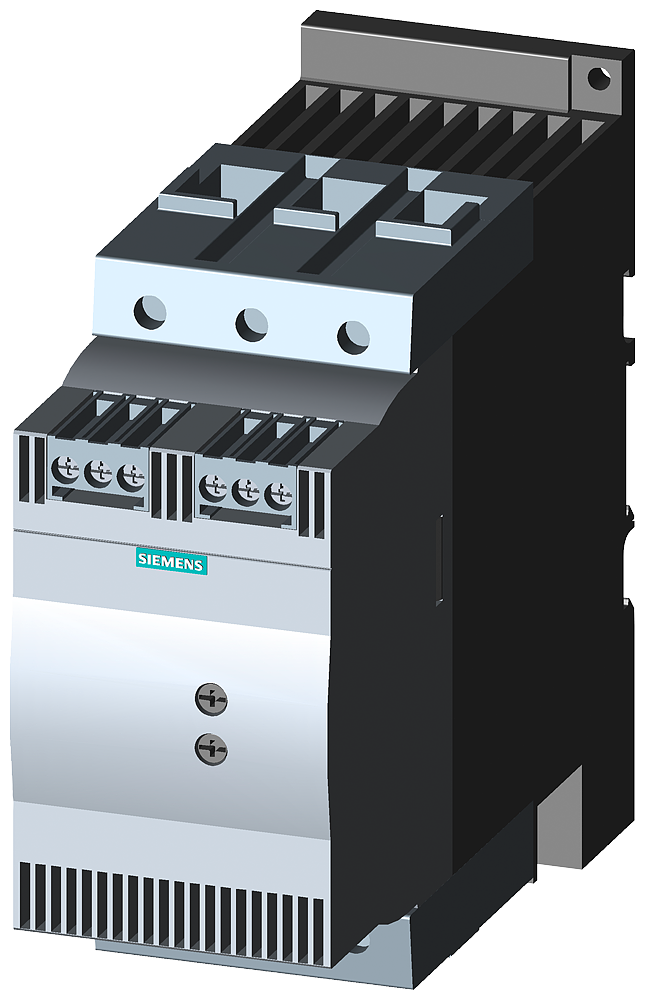

SIRIUS 3RW30471BB14 Soft Starter, 110/230 VAC/VDC, 3-Poles, IP00
Custom_Product_Images_Illustration
SIRIUS 3RW30471BB14 Soft Starter, 110/230 VAC/VDC, 3-Poles, IP00
SKU780707
MFGR #3RW30471BB14
Your Cost: $2,962.34/ea
List: SIEMENS 3RW30471BB14 SOFTSTART 98A 30/30/75HP 120/230V SCRW
SIEMENS 3RW30471BB14 SOFTSTART 98A 30/30/75HP 120/230V SCRW
Alternate Catalog Number 3RW3047-1BB14 Amperage Rating 106/398 A ARRA Compliant C Auxiliary Contact Rating 1NO Buy American Compliant C Catalog Number 3RW30471BB14 Connection Type Screw Country of Origin CZ Currency USD Dimensions 170 mm H x 70 mm W x 190 mm D EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 206.85 Gross Volume UOM in Gross Weight Per Pack 3.7620 lb Gross Weight per Pack Metric 1.71 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109170 Height 8.5100 in Height [Metric] 21.6154 cm Length 7.1700 in Length [Metric] 18.2118 cm Motor Power 30 hp, 75 hp Number Of Poles 3 Operating Temperature -25 to 60 °C Overload Relay Electronic Phase 3 pH Returnable Y Standards RoHS CompliantUL ListedCE CertifiedCSA CertifiedEAC ApprovedCCC CertifiedC-Tick Timing 0 to 20 s UNSPSC 39121521 UPC 11 75455495842 UPC 12 754554958422 Wattage 55 kW Width 3.3900 in Width [Metric] 8.6106 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Coil Voltage 110 to 230 VAC//VDC Enclosure Type IP00 30 hp at 220/230 VAC, 75 hp at 460/480 VAC This not only saves space in the control cabinet and on the standard mounting rail but also does away completely with the wiring work needed for wye-delta starters This is notable in particular for higher motor ratings which are only rarely available as fully wired solutions Compact dimensions, short start up times, easy wiring and fast commissioning make themselves felt as clear-cut cost advantages The bypass contacts of these softstarters are protected during operation by an integrated solid state arc quenching system The new series of devices comes with the polarity balancing control method, which is designed to prevent direct current components in 2-phase controlled softstarters
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3RW3047-1BB14 |
| Amperage Rating | 106/398 A |
| ARRA Compliant | C |
| Auxiliary Contact Rating | 1NO |
| Buy American Compliant | C |
| Catalog Number | 3RW30471BB14 |
| Connection Type | Screw |
| Country of Origin | CZ |
| Currency | USD |
| Dimensions | 170 mm H x 70 mm W x 190 mm D |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 206.85 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 3.7620 lb |
| Gross Weight per Pack Metric | 1.71 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109170 |
| Height | 8.5100 in |
| Height [Metric] | 21.6154 cm |
| Length | 7.1700 in |
| Length [Metric] | 18.2118 cm |
| Motor Power | 30 hp, 75 hp |
| Number Of Poles | 3 |
| Operating Temperature | -25 to 60 °C |
| Overload Relay | Electronic |
| Phase | 3 pH |
| Returnable | Y |
| Standards | RoHS CompliantUL ListedCE CertifiedCSA CertifiedEAC ApprovedCCC CertifiedC-Tick |
| Timing | 0 to 20 s |
| UNSPSC | 39121521 |
| UPC 11 | 75455495842 |
| UPC 12 | 754554958422 |
| Wattage | 55 kW |
| Width | 3.3900 in |
| Width [Metric] | 8.6106 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Coil Voltage | 110 to 230 VAC//VDC |
| Enclosure Type | IP00 |
| 30 hp at 220/230 VAC, 75 hp at 460/480 VAC |
| This not only saves space in the control cabinet and on the standard mounting rail but also does away completely with the wiring work needed for wye-delta starters |
| This is notable in particular for higher motor ratings which are only rarely available as fully wired solutions |
| Compact dimensions, short start up times, easy wiring and fast commissioning make themselves felt as clear-cut cost advantages |
| The bypass contacts of these softstarters are protected during operation by an integrated solid state arc quenching system |
| The new series of devices comes with the polarity balancing control method, which is designed to prevent direct current components in 2-phase controlled softstarters |
