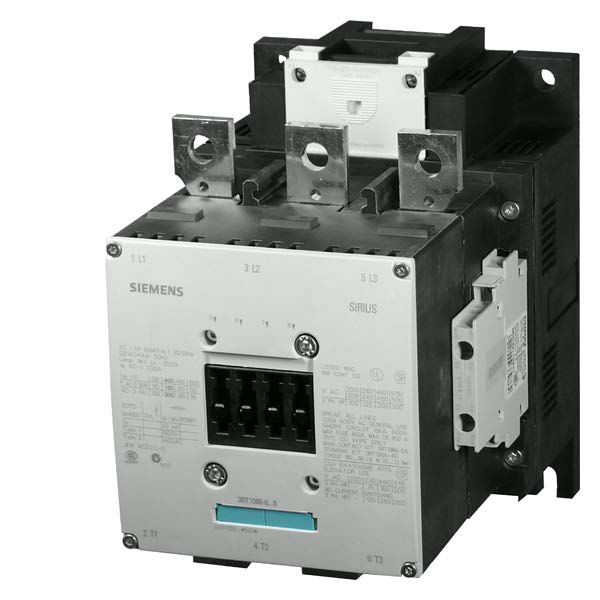

SIRIUS 3RT1066-6AR36 Power Contactor 3RT1066-6AR36, 440 to 480 VAC/VDC Coil, 300 A Max Load, 3NO, 3 Poles
Custom_Product_Images_Illustration
SIRIUS 3RT1066-6AR36 Power Contactor 3RT1066-6AR36, 440 to 480 VAC/VDC Coil, 300 A Max Load, 3NO, 3 Poles
SKU610485
MFGR #3RT1066-6AR36
Your Cost: $1,878.40/ea
List: SIEMENS 3RT1066-6AR36 CONTACTOR NONREV S10 300A 440-480V 3P BR
SIEMENS 3RT1066-6AR36 CONTACTOR NONREV S10 300A 440-480V 3P BR
Alternate Catalog Number 3RT1066-6AR36 Application Contactors for switching motors ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RT1066-6AR36 Coil Power Rating 6.7/590 VA, 7.4/650 W Coil Voltage 440 to 480 VAC//VDC Connection screw-type terminals Connection Type Screw Contact Configuration 2NO-2NC Contact Rating A600 / Q600 Country of Origin DE Currency USD Dimensions 210 mm H x 145 mm W x 202 mm D Enclosure Type IP00/IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 1134.54 Gross Volume UOM in Gross Weight Per Pack 15.2500 lb Gross Weight per Pack Metric 6.92 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 9.5500 in Height [Metric] 24.2570 cm Length 13.5000 in Length [Metric] 34.2900 cm Manufacturer Siemens Maximum Load Current 300 A Mounting Screw fixing Mounting Type Threaded Number of Auxiliary Contacts 4 Number Of Poles 3 Operating Cycles 10000000 Operating Temperature -25 to 60 Phase 3 Power Factor 1.00 Returnable Y Size S10 Standards RoHS CompliantREACH Article 33CCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedABS ApprovedRMRS ApprovedDNV-GL Approved Stock Status NONSTOCK Sub Brand Sirius Terminal Type Busbar Type Standard UNSPSC 39121529 UPC 11 75455477261 UPC 12 754554772615 Wattage 160 kW Width 8.8000 in Width [Metric] 22.3520 cm Contactors for switching motors Spring loaded or screw terminals 590 VA at 50 Hz (pick-up), 6.7 VA at 50 Hz (holding) magnet coil at AC, 650 W (closing), 7.4 W (holding) magnet coil at DC 0.9 (closing/holding) power factor 10000000 of contactor/typical, 5000000 of the contactor with added electronics compatible auxiliary switch block typical, 10000000 of the contactor with added auxiliary switch block typical
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 3RT1066-6AR36 |
| Application | Contactors for switching motors |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RT1066-6AR36 |
| Coil Power Rating | 6.7/590 VA, 7.4/650 W |
| Coil Voltage | 440 to 480 VAC//VDC |
| Connection | screw-type terminals |
| Connection Type | Screw |
| Contact Configuration | 2NO-2NC |
| Contact Rating | A600 / Q600 |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 210 mm H x 145 mm W x 202 mm D |
| Enclosure Type | IP00/IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 1134.54 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 15.2500 lb |
| Gross Weight per Pack Metric | 6.92 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 9.5500 in |
| Height [Metric] | 24.2570 cm |
| Length | 13.5000 in |
| Length [Metric] | 34.2900 cm |
| Manufacturer | Siemens |
| Maximum Load Current | 300 A |
| Mounting | Screw fixing |
| Mounting Type | Threaded |
| Number of Auxiliary Contacts | 4 |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 |
| Operating Temperature | -25 to 60 |
| Phase | 3 |
| Power Factor | 1.00 |
| Returnable | Y |
| Size | S10 |
| Standards | RoHS CompliantREACH Article 33CCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedABS ApprovedRMRS ApprovedDNV-GL Approved |
| Stock Status | NONSTOCK |
| Sub Brand | Sirius |
| Terminal Type | Busbar |
| Type | Standard |
| UNSPSC | 39121529 |
| UPC 11 | 75455477261 |
| UPC 12 | 754554772615 |
| Wattage | 160 kW |
| Width | 8.8000 in |
| Width [Metric] | 22.3520 cm |
| Contactors for switching motors |
| Spring loaded or screw terminals |
| 590 VA at 50 Hz (pick-up), 6.7 VA at 50 Hz (holding) magnet coil at AC, 650 W (closing), 7.4 W (holding) magnet coil at DC |
| 0.9 (closing/holding) power factor |
| 10000000 of contactor/typical, 5000000 of the contactor with added electronics compatible auxiliary switch block typical, 10000000 of the contactor with added auxiliary switch block typical |
