SIRIUS (Siemens)

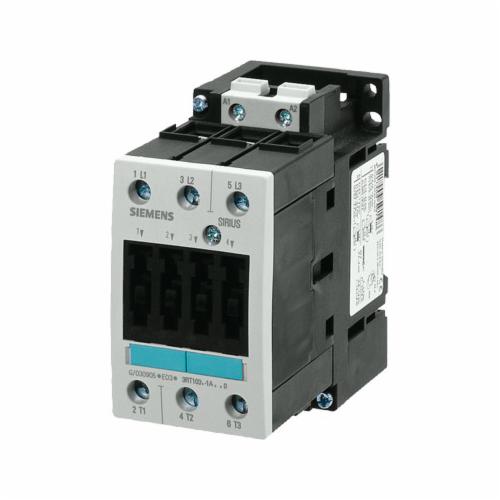

SIRIUS 3RT1024-1AK60 IEC Contactor 3RT1024-1AK60, 110/120 VAC Coil, 3NO, 3 Poles
Custom_Product_Images_Illustration
SIRIUS (Siemens)
SIRIUS 3RT1024-1AK60 IEC Contactor 3RT1024-1AK60, 110/120 VAC Coil, 3NO, 3 Poles
SKU15451
MFGR #3RT1024-1AK60
Your Cost: $91.64/ea
List: SIEMENS 3RT1024-1AK60 12A 120V CONTACTR
SIEMENS 3RT1024-1AK60 12A 120V CONTACTR
Brand SIRIUS (Siemens) Catalog Number 3RT1024-1AK60 Coil Power Rating 69 VA Pickup/7.5VA Holding Coil Voltage 110/120 VAC Connection Type Screw Contact Configuration 3NO Country of Origin DE Dimensions 85 mm H x 45 mm W x 91 mm D Enclosure Type IP20 Frequency Rating 50/60 Hz Gross Weight Per Pack 0.6000 lb Manufacturer Siemens Mounting Type Screw/Snap-On Number of Auxiliary Contacts 3NO Number Of Poles 3 Operating Temperature -25 to 60 °C Returnable N Size Size S0 Standards UL Listed, CSA Certified, GOST, CCC, KETI, EG-Konf, , RoHS Compliant Stock Status NONSTOCK Terminal Screw UNSPSC 39121529 UPC 11 75455441090 Wattage 5 kW Design of the fuse link: Fuse gL/gG: 10 AMP Auxiliary, Fuse gL/gG: 63 AMP Main; Enclosure: S0; Number Of Poles: 3 Fuse gL/gG 10 A auxiliary, fuse gL/gG 63 A main design of the fuse link 3 phase Screw and snap-on mounting onto 35 mm standard mounting rail 10000000 of the contactor/typical, 10000000 of the contactor with added auxiliary switch block/typical, 5000000 of the contactor with added electronics compatible auxiliary switch block/typical 1/hr
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| Brand | SIRIUS (Siemens) |
| Catalog Number | 3RT1024-1AK60 |
| Coil Power Rating | 69 VA Pickup/7.5VA Holding |
| Coil Voltage | 110/120 VAC |
| Connection Type | Screw |
| Contact Configuration | 3NO |
| Country of Origin | DE |
| Dimensions | 85 mm H x 45 mm W x 91 mm D |
| Enclosure Type | IP20 |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.6000 lb |
| Manufacturer | Siemens |
| Mounting Type | Screw/Snap-On |
| Number of Auxiliary Contacts | 3NO |
| Number Of Poles | 3 |
| Operating Temperature | -25 to 60 °C |
| Returnable | N |
| Size | Size S0 |
| Standards | UL Listed, CSA Certified, GOST, CCC, KETI, EG-Konf, , RoHS Compliant |
| Stock Status | NONSTOCK |
| Terminal | Screw |
| UNSPSC | 39121529 |
| UPC 11 | 75455441090 |
| Wattage | 5 kW |
| Design of the fuse link: Fuse gL/gG: 10 AMP Auxiliary, Fuse gL/gG: 63 AMP Main; Enclosure: S0; Number Of Poles: 3 |
| Fuse gL/gG 10 A auxiliary, fuse gL/gG 63 A main design of the fuse link |
| 3 phase |
| Screw and snap-on mounting onto 35 mm standard mounting rail |
| 10000000 of the contactor/typical, 10000000 of the contactor with added auxiliary switch block/typical, 5000000 of the contactor with added electronics compatible auxiliary switch block/typical 1/hr |
