SIRIUS 3RT1016-1AB01 Standard Power Contactor, 24 VAC V Coil, 1NO Contact, 3 Poles
Custom_Product_Images_Illustration

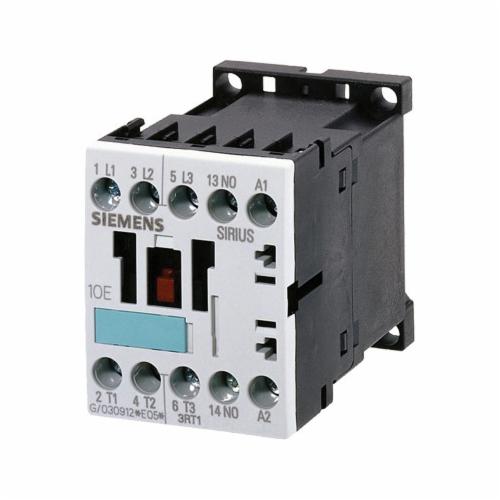

SIRIUS 3RT1016-1AB01 Standard Power Contactor, 24 VAC V Coil, 1NO Contact, 3 Poles
SKU1121541
MFGR #3RT10161AB01
Your Cost: $65.58/ea
List: SIRIUS Power Contactor, Standard, 24 VAC Coil, 27 VA Pickup/4.4 VA Holding Coil Power Rating, 3 Pole, 50/60 Hz, 4 kW, Non-Reversing Contact, 1NO, 1NO Auxiliary Contacts, Power Factor: 0.8 Closing/0.27 Holding, Screw, SZ S00, Screw Terminal, IP20, 30000000 Cycles Contactor/Typical Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Panel Mount, 57-1/2 mm H x 45 mm W x 72 mm D
SIRIUS Power Contactor, Standard, 24 VAC Coil, 27 VA Pickup/4.4 VA Holding Coil Power Rating, 3 Pole, 50/60 Hz, 4 kW, Non-Reversing Contact, 1NO, 1NO Auxiliary Contacts, Power Factor: 0.8 Closing/0.27 Holding, Screw, SZ S00, Screw Terminal, IP20, 30000000 Cycles Contactor/Typical Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Panel Mount, 57-1/2 mm H x 45 mm W x 72 mm D
Catalog Number 3RT10161AB01 Coil Power Rating 27 VA Pickup/4.4 VA Holding Connection Type Screw Contact Type Non-Reversing Country of Origin DE Enclosure Type IP20 Frequency Rating 50/60 Hz Gross Weight Per Pack 0.4000 lb Mounting Type DIN Rail/Panel Number of Auxiliary Contacts 1NO Number Of Poles 3 Operating Temperature -25 to 60 Returnable N Size SZ S00 Standards UL E31519 Listed, RoHS Compliant Terminal Type Screw UNSPSC 39121529 UPC 11 75455441825 UPC 12 75455441825 Wattage 4 kW Stock Status NONSTOCK Brand SIRIUS (Siemens) Manufacturer Siemens Coil Voltage 24 VAC Contact Configuration 1NO Type Standard Without auxiliaries and suppression S00 coil frame size 30000000 of contactor/typical, 5000000 of the contactor with added electronics compatible auxiliary switch block typical, 10000000 of the contactor with added auxiliary switch block typical
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 3RT10161AB01 |
| Coil Power Rating | 27 VA Pickup/4.4 VA Holding |
| Connection Type | Screw |
| Contact Type | Non-Reversing |
| Country of Origin | DE |
| Enclosure Type | IP20 |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.4000 lb |
| Mounting Type | DIN Rail/Panel |
| Number of Auxiliary Contacts | 1NO |
| Number Of Poles | 3 |
| Operating Temperature | -25 to 60 |
| Returnable | N |
| Size | SZ S00 |
| Standards | UL E31519 Listed, RoHS Compliant |
| Terminal Type | Screw |
| UNSPSC | 39121529 |
| UPC 11 | 75455441825 |
| UPC 12 | 75455441825 |
| Wattage | 4 kW |
| Stock Status | NONSTOCK |
| Brand | SIRIUS (Siemens) |
| Manufacturer | Siemens |
| Coil Voltage | 24 VAC |
| Contact Configuration | 1NO |
| Type | Standard |
| Without auxiliaries and suppression |
| S00 coil frame size |
| 30000000 of contactor/typical, 5000000 of the contactor with added electronics compatible auxiliary switch block typical, 10000000 of the contactor with added auxiliary switch block typical |
