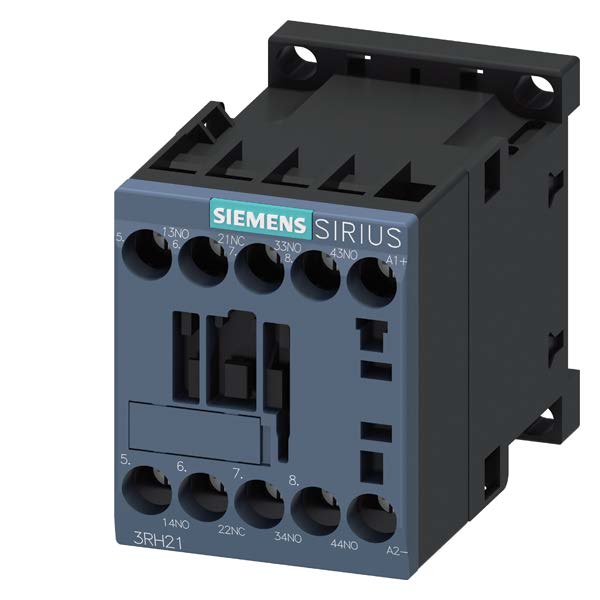

SIRIUS 3RH21311HB40 COUPLING RELAY 3NO+1NC DC 24V SCREW
SKU649609
MFGR #3RH21311HB40
Your Cost: $84.34/ea
List: SIEMENS 3RH21311HB40 COUPLING RELAY 3NO+1NC DC 24V SCREW
SIEMENS 3RH21311HB40 COUPLING RELAY 3NO+1NC DC 24V SCREW
Alternate Catalog Number 3RH2131-1HB40 ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RH21311HB40 Coil Voltage 24 VDC Contact Form 3NO-1NC Contact Rating 10/1 A at 230/690 VAC, 10/0.15 A at 24/600 VDC Country of Origin DE Currency USD Dimensions 57.5 mm H x 45 mm W x 73 mm D Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 14.98 Gross Volume UOM in Gross Weight Per Pack 0.6200 lb Gross Weight per Pack Metric 0.28 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 1.9500 in Height [Metric] 4.9530 cm Length 3.2000 in Length [Metric] 8.1280 cm Manufacturer Siemens Mounting Type Snap-On Number Of Poles 4 Replaced Catalog Number 3RH1131-1HB40 Returnable Y Standards ARRA, Buy American Act and RoHS Compliant, CE, CCC, CSA Certified, EAC Standard, EN 60947-1, EN 60947-5-1, IEC 60947-1, IEC 60947-5-1, UL Listed Stock Status NONSTOCK Temperature Rating -25 to 60 °C Terminal Type Screw UNSPSC 39121521 UPC 11 66264390635 UPC 12 662643906356 Width 2.4000 in Width [Metric] 6.0960 cm The 3RH2 contactor relays are suitable for use in any climate The 3RH2 contactor relays have screw, ring terminal lug or spring-type terminals S00 size of contactor Contact rating of auxiliary contacts according to UL is A600, Q600 They are finger safe according to EN 50274 10/1 A at 230/690 VAC AC-15, 10/0.15 A at 24/600 VDC DC-12 Four contacts are available in the basic unit
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3RH2131-1HB40 |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RH21311HB40 |
| Coil Voltage | 24 VDC |
| Contact Form | 3NO-1NC |
| Contact Rating | 10/1 A at 230/690 VAC, 10/0.15 A at 24/600 VDC |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 57.5 mm H x 45 mm W x 73 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 14.98 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.6200 lb |
| Gross Weight per Pack Metric | 0.28 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 1.9500 in |
| Height [Metric] | 4.9530 cm |
| Length | 3.2000 in |
| Length [Metric] | 8.1280 cm |
| Manufacturer | Siemens |
| Mounting Type | Snap-On |
| Number Of Poles | 4 |
| Replaced Catalog Number | 3RH1131-1HB40 |
| Returnable | Y |
| Standards | ARRA, Buy American Act and RoHS Compliant, CE, CCC, CSA Certified, EAC Standard, EN 60947-1, EN 60947-5-1, IEC 60947-1, IEC 60947-5-1, UL Listed |
| Stock Status | NONSTOCK |
| Temperature Rating | -25 to 60 °C |
| Terminal Type | Screw |
| UNSPSC | 39121521 |
| UPC 11 | 66264390635 |
| UPC 12 | 662643906356 |
| Width | 2.4000 in |
| Width [Metric] | 6.0960 cm |
| The 3RH2 contactor relays are suitable for use in any climate |
| The 3RH2 contactor relays have screw, ring terminal lug or spring-type terminals |
| S00 size of contactor |
| Contact rating of auxiliary contacts according to UL is A600, Q600 |
| They are finger safe according to EN 50274 |
| 10/1 A at 230/690 VAC AC-15, 10/0.15 A at 24/600 VDC DC-12 |
| Four contacts are available in the basic unit |
