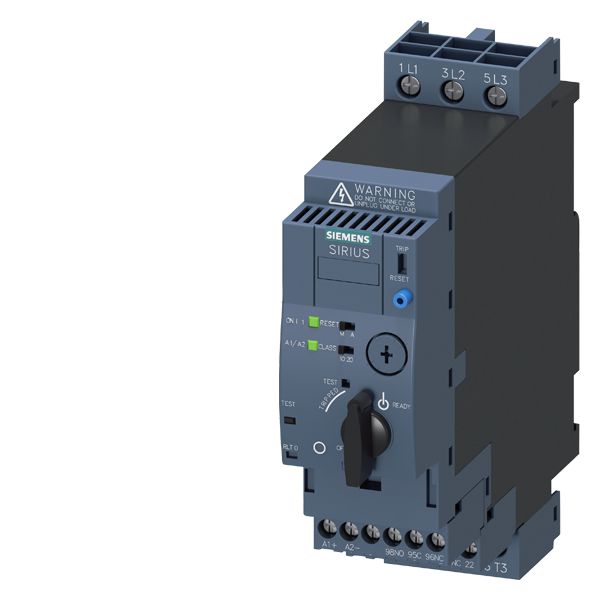

SIRIUS 3RA6120-1CB32 3RA6 Fuseless Compact Starter, 24 VAC/VDC Coil, 3 Poles, IP20 Enclosure
IEC Starters
590263
MFG #: 3RA6120-1CB32
Siemens
609.14000
/ ea
SIEMENS 3RA6120-1CB32 DOL COMPACT STARTER 24VUC 1-4A DIN
- 3D Rendering URL - G_NSB0_XX_91193V.pdf(3D Rendering URL)
- Catalog 1 URL - SIRIUS_IC10_chap08_English_2014.pdf(Catalog 1 URL)
- Catalog URL - SIRIUS_3RA2110_0BA15_1BB4_Catalog.pdf(Catalog URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet 1 URL - Siemens_3RA6120_1CB32_Specification_Sheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 10991_NLGTA0RW3DY8QKVS.pdf(Spec Sheet URL)
- Spec Sheet URL - 3RA6120-1CB32.pdf(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=3RA6120-1CB32&language=en(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- Video - http://www.automation.siemens.com/bilddb/download.aspx?reqInsID=653976(Video)
- Features
| Integrated functionality, permanent wiring, easy replacement |
| 1.5 kW at 400 VAC, 2.2 kW at 500 VAC, 3kW at 690 VAC |
| 3.6 A at 400 VAC, 3.9 A at 500 VAC, 3.8 A at 690 VAC |
| 3/4 hp at 200/208 VAC, 3/4 hp at 220/230 VAC, 2 hp at 460/480 VAC, 3 hp at 575/600 VAC |
| Greater productivity through automatic device reset in case of overload and differentiated detection of overload and short circuit |
| Easy checking of the wiring and testing of the motor direction prior to start up thanks to optional control kits |
| Speedy replacement of devices thanks to removable terminals with spring type and screw connections in the main and control circuit |
| Efficient power distribution through the related SIRIUS infeed system for 3RA6 |
| Direct connection of the motor feeder cable to the SIRIUS infeed system for 3RA6 thanks to integrated PE bar |
| Connecting and looping through incoming feeders up to a cross section of 70 sq-mm |
| Integration in totally integrated automation thanks to the optional connection to AS-interface or IO-Link |
