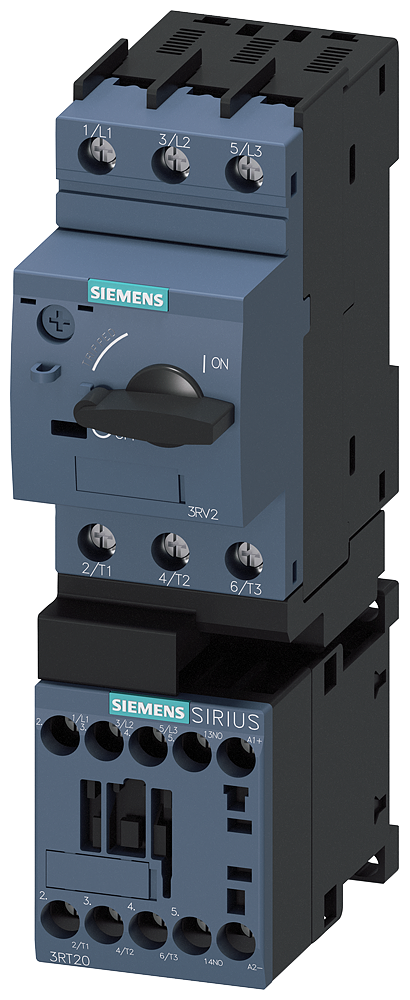

SIRIUS 3RA21101FA151BB4 3RA2 Fuseless Load Feeder Starter, 24 VDC Coil, 3 Poles, IP20 Enclosure
Custom_Product_Images_Illustration
SIRIUS 3RA21101FA151BB4 3RA2 Fuseless Load Feeder Starter, 24 VDC Coil, 3 Poles, IP20 Enclosure
SKU700388
MFGR #3RA21101FA151BB4
Your Cost: $298.70/ea
List: SIEMENS 3RA21101FA151BB4 STARTER DOL S00 3.5-5A 24VDC SCREW
SIEMENS 3RA21101FA151BB4 STARTER DOL S00 3.5-5A 24VDC SCREW
Alternate Catalog Number 3RA2110-1FA15-1BB4 Amperage Rating 3.6 A ARRA Compliant C Auxiliary Contact Rating 1NO Brand Siemens Buy American Compliant C Catalog Number 3RA21101FA151BB4 Coil Voltage 24 VDC Connection Type Screw Country of Origin DE Currency USD Dimensions 167 mm H x 45 mm W x 97 mm D Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 59.60 Gross Volume UOM in Gross Weight Per Pack 1.3860 lb Gross Weight per Pack Metric 0.63 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536304000 Height 4.4100 in Height [Metric] 11.2014 cm Length 6.8600 in Length [Metric] 17.4244 cm Manufacturer Siemens Number Of Poles 3 Operating Cycles 30000000 Cycles Operating Temperature -20 to 60 °C Overload Relay Class 10 Thermal Bimetallic Returnable Y Standards RoHS CompliantREACH Article 33UL ListedCE CertifiedCSA CertifiedEAC ApprovedATEXABS ApprovedBureau Veritas CertifiedLloyd's RegisteredPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL Approved Stock Status NONSTOCK Type DOL Fuseless Load Feeder Non-Reversing Size S00 UNSPSC 39121521 UPC 11 66264389845 UPC 12 662643898453 Voltage Rating 690 VAC Wattage 1500 W Width 1.9700 in Width [Metric] 5.0038 cm The motor starter protector and contactor are mechanically and electrically connected by means of the link module Auxiliary switches on the motor starter protector and the contactor can be easily fitted due to the modular system High planning reliability through consistent combination tests for fuseless and fused configuration High operational reliability through short circuit breaking capacity of 150 kA with type of coordination 1 and 2 Spring type connection possible throughout enhanced operational reliability and less wiring work thanks to plug in connections Power loss 5 to 10% smaller than for comparable devices, hence lower energy consumption Connection of feeders to the control system through standardized system connection, for fast integration in TIA and less wiring work
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3RA2110-1FA15-1BB4 |
| Amperage Rating | 3.6 A |
| ARRA Compliant | C |
| Auxiliary Contact Rating | 1NO |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RA21101FA151BB4 |
| Coil Voltage | 24 VDC |
| Connection Type | Screw |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 167 mm H x 45 mm W x 97 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 59.60 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.3860 lb |
| Gross Weight per Pack Metric | 0.63 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536304000 |
| Height | 4.4100 in |
| Height [Metric] | 11.2014 cm |
| Length | 6.8600 in |
| Length [Metric] | 17.4244 cm |
| Manufacturer | Siemens |
| Number Of Poles | 3 |
| Operating Cycles | 30000000 Cycles |
| Operating Temperature | -20 to 60 °C |
| Overload Relay | Class 10 Thermal Bimetallic |
| Returnable | Y |
| Standards | RoHS CompliantREACH Article 33UL ListedCE CertifiedCSA CertifiedEAC ApprovedATEXABS ApprovedBureau Veritas CertifiedLloyd's RegisteredPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL Approved |
| Stock Status | NONSTOCK |
| Type | DOL Fuseless Load Feeder Non-Reversing Size S00 |
| UNSPSC | 39121521 |
| UPC 11 | 66264389845 |
| UPC 12 | 662643898453 |
| Voltage Rating | 690 VAC |
| Wattage | 1500 W |
| Width | 1.9700 in |
| Width [Metric] | 5.0038 cm |
| The motor starter protector and contactor are mechanically and electrically connected by means of the link module |
| Auxiliary switches on the motor starter protector and the contactor can be easily fitted due to the modular system |
| High planning reliability through consistent combination tests for fuseless and fused configuration |
| High operational reliability through short circuit breaking capacity of 150 kA with type of coordination 1 and 2 |
| Spring type connection possible throughout enhanced operational reliability and less wiring work thanks to plug in connections |
| Power loss 5 to 10% smaller than for comparable devices, hence lower energy consumption |
| Connection of feeders to the control system through standardized system connection, for fast integration in TIA and less wiring work |
