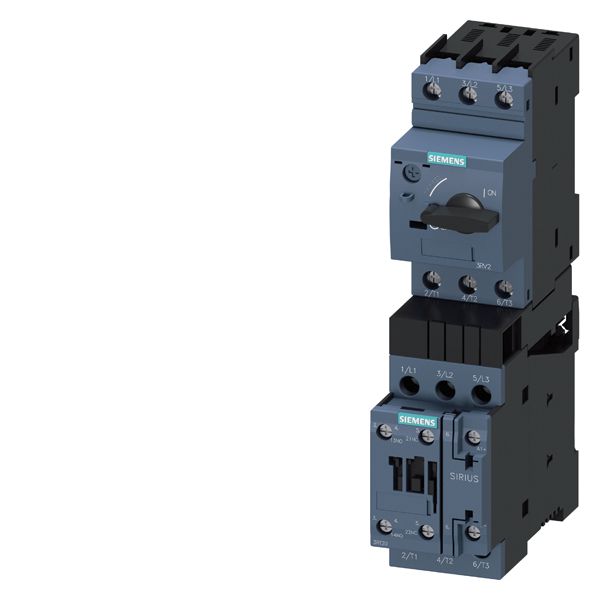

SIRIUS 3RA2 Fuseless Load Feeder Starter, 24 VDC Coil, 3 Poles, IP20 Enclosure
Custom_Product_Images_Illustration
SIRIUS 3RA2 Fuseless Load Feeder Starter, 24 VDC Coil, 3 Poles, IP20 Enclosure
SKU671534
MFGR #3RA21201HA240BB4
Your Cost: $421.51/ea
List: The 3RA2 fuseless load feeders consist of the 3RV2 motor starter protector and the 3RT2 electromechanical contactor. The devices are electrically and mechanically connected using preassembled assembly kits (link modules, wiring kits and standard mounting rail or busbar adapters). Around 500 preassembled 3RA2 combinations of these innovative 3RT2 controls and 3RV2 protection equipment can be ordered for direct on line and reversing starting of standard three phase motors up to 32 A (approximately 15 kW/400 VAC). In the 3RA2 load feeder, the 3RV2 motor starter protector is responsible for overload and short-circuit protection. Back up protective devices, such as melting fuses or limiters, are superfluous here, as the motor starter protector is short circuit proof up to 150 kA at 400 VAC.
The 3RA2 fuseless load feeders consist of the 3RV2 motor starter protector and the 3RT2 electromechanical contactor. The devices are electrically and mechanically connected using preassembled assembly kits (link modules, wiring kits and standard mounting rail or busbar adapters). Around 500 preassembled 3RA2 combinations of these innovative 3RT2 controls and 3RV2 protection equipment can be ordered for direct on line and reversing starting of standard three phase motors up to 32 A (approximately 15 kW/400 VAC). In the 3RA2 load feeder, the 3RV2 motor starter protector is responsible for overload and short-circuit protection. Back up protective devices, such as melting fuses or limiters, are superfluous here, as the motor starter protector is short circuit proof up to 150 kA at 400 VAC.
Action Reversing Alternate Catalog Number 3RA2120-1HA24-0BB4 Amperage Rating 5.5 to 8 A ARRA Compliant C Auxiliary Contact Rating 1NO-1NC Brand Siemens Buy American Compliant C Catalog Number 3RA21201HA240BB4 Coil Voltage 24 VDC Connection Type Threaded Country of Origin DE Currency USD Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 90.47 Gross Volume UOM in Gross Weight Per Pack 2.0860 lb Gross Weight per Pack Metric 0.95 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536304000 Height 4.6500 in Height [Metric] 11.8110 cm Length 8.3500 in Length [Metric] 21.2090 cm Manufacturer Siemens Number Of Poles 3 Operating Cycles 10000000 Cycles Overload Relay Solid State Phase 3 pH Returnable Y Series 3RA2 Standards ARRA, Buy American Act and RoHS Compliant, UL Listed, CSA, CE Certified, EAC Standard, IEC, EN 60947-1, 60947-2, 60947-4-1 Starting Modes Direct On-Line Stock Status NONSTOCK Type Fuseless UNSPSC 39121521 UPC 11 66264390006 UPC 12 662643900064 Voltage Rating 690 VAC Width 2.3300 in Width [Metric] 5.9182 cm Minimum planning and assembly work and far less wiring with the preassembled complete units Plug-in connectors from the motor starter protector to all types of SIRIUS controls, for quicker and error free assembly of feeders with screw and spring type connection High planning reliability through consistent combination tests for fuseless and fused configuration High operational reliability through short circuit breaking capacity of 150 kA with type of coordination 1 and 2 Spring type connection possible throughout enhanced operational reliability and less wiring work thanks to plug-in connections Power loss 5 to 10% smaller than for comparable devices, hence lower energy consumption Connection of feeders to the control system through standardized system connection, for fast integration in TIA and less wiring work
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | Reversing |
| Alternate Catalog Number | 3RA2120-1HA24-0BB4 |
| Amperage Rating | 5.5 to 8 A |
| ARRA Compliant | C |
| Auxiliary Contact Rating | 1NO-1NC |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RA21201HA240BB4 |
| Coil Voltage | 24 VDC |
| Connection Type | Threaded |
| Country of Origin | DE |
| Currency | USD |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 90.47 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 2.0860 lb |
| Gross Weight per Pack Metric | 0.95 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536304000 |
| Height | 4.6500 in |
| Height [Metric] | 11.8110 cm |
| Length | 8.3500 in |
| Length [Metric] | 21.2090 cm |
| Manufacturer | Siemens |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 Cycles |
| Overload Relay | Solid State |
| Phase | 3 pH |
| Returnable | Y |
| Series | 3RA2 |
| Standards | ARRA, Buy American Act and RoHS Compliant, UL Listed, CSA, CE Certified, EAC Standard, IEC, EN 60947-1, 60947-2, 60947-4-1 |
| Starting Modes | Direct On-Line |
| Stock Status | NONSTOCK |
| Type | Fuseless |
| UNSPSC | 39121521 |
| UPC 11 | 66264390006 |
| UPC 12 | 662643900064 |
| Voltage Rating | 690 VAC |
| Width | 2.3300 in |
| Width [Metric] | 5.9182 cm |
| Minimum planning and assembly work and far less wiring with the preassembled complete units |
| Plug-in connectors from the motor starter protector to all types of SIRIUS controls, for quicker and error free assembly of feeders with screw and spring type connection |
| High planning reliability through consistent combination tests for fuseless and fused configuration |
| High operational reliability through short circuit breaking capacity of 150 kA with type of coordination 1 and 2 |
| Spring type connection possible throughout enhanced operational reliability and less wiring work thanks to plug-in connections |
| Power loss 5 to 10% smaller than for comparable devices, hence lower energy consumption |
| Connection of feeders to the control system through standardized system connection, for fast integration in TIA and less wiring work |
