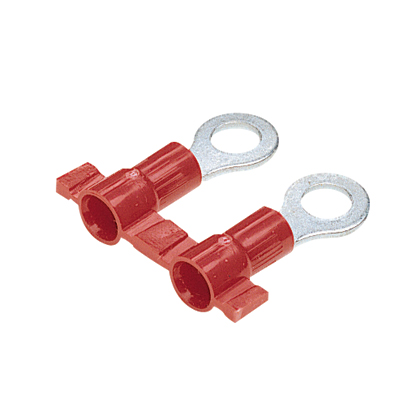

Panduit® PV18-6RB-3K Pan-Term® PV-RB Insulated Ring Terminal, 22 to 18 AWG Conductor, 0.78 in L, Insulation Support Barrel, Copper
Ring Lugs
61801
MFG #: PV18-6RB-3K
Panduit®
276.58000
/ ea
Panduit® Pan-Term® Terminals are designed and manufactured for fast assembly, and reliable performance. Panduit provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
- http://www.panduit.com(Seller Home Page URL)
- Install Instructions 1 URL - C-TMPMV1-3RB-3K--ENG.pdf(Install Instructions 1 URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet 1 URL - Panduit_PV10_14RB_2K_Specification_Sheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - PV18-xxRB-3K A41069_09.pdf(Spec Sheet URL)
- Tech Drawing URL - 10965_3O5IPCHZNYV2SDX1.pdf(Tech Drawing URL)
- Video - https://www.panduit.com/content/dam/panduit/en/products/media/0/20/220/4220/110114220.mp4(Video)
- Features
| Vinyl insulated |
| Funnel entry barrel configuration |
| Ring tongue design assures a secure connection in high vibration applications |
| Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time |
| Insulation support helps to prevent wire damage in bending applications |
| Plastic insulation crimp |
| Free hanging (in-line) mounting |
| Suitable for use with CA9, CA-800EZ tools |
| 3000 Pieces/Reel |
